1~2m3/min Compressed Air Filter RCE-015* Precision Filter Element EL-015*

A more effective and cost-effective high-precision filter, this filter adopts a unique appearance design, internal and external chemical anti-corrosion technology, high-temperature spray surface treat

  • Working Pressure:7~16[ bar ]102~232[ psig ]
  • Free Air Delivery:35.3~883[ cfm ]1~25[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

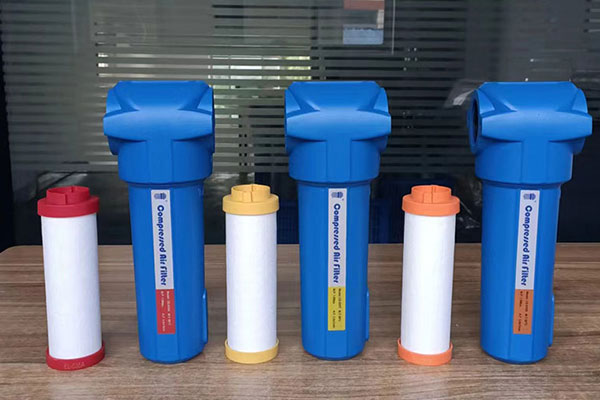

Precision filter (2).jpg

A more effective and cost-effective high-precision filter, this filter adopts a unique appearance design, internal and external chemical anti-corrosion technology, high-temperature spray surface treatment, and selects high-precision imported filter materials, simple and convenient parallel installation method, Suitable for all kinds of compressed air filtration with working pressure below 1.0Mpo, efficiently remove oil, water and dust in compressed air, and ensure the quality of compressed air.


Technical Parameters

ModelConnection size(G threaded)Filter modelflow(m³/min)
RCE-015*1"EL-015*1-2
RCE-035*1.5"EL-035*3.5
RCE-060*1.5"EL-060*6.0
RCE-080*1.5"EL-080*8.0
RCE-120*2"EL-120*11.2
RCE-160*2"EL-160*15.5
RCE-180*2.5"EL-180*20.4
RCE-240*2.5"EL-240*25.0
