Factory Direct Compressed Air Filter Pipe Line Filter BXG-030* for Air Compressor

BXG series stainless steel precision filter (1.6Mpa) The shell is made of 304 stainless steel, the inner and outer layers are mirror polished, anti-corrosion, low resistance, widely used in various in

  • Working Pressure:7~16[ bar ]102~232[ psig ]
  • Free Air Delivery:35.3~1412[ cfm ]1~40[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

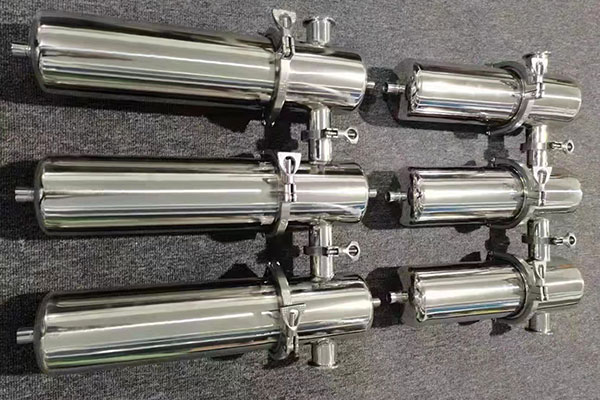

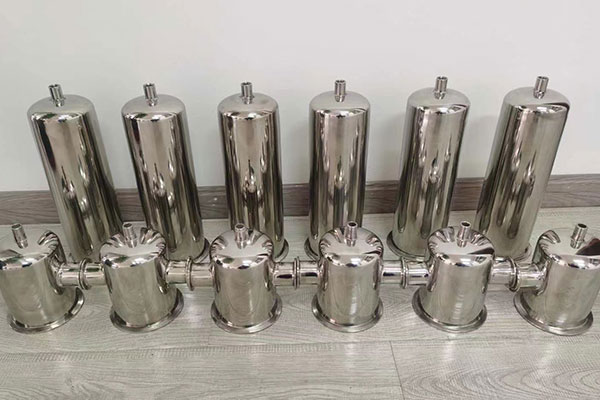

BXG series stainless steel precision filter (1.6Mpa)The shell is made of 304 stainless steel, the inner and outer layers are mirror polished, anti-corrosion, low resistance, widely used in various industrial gas filtration applications and gas sterilization treatment, such as semiconductor, metallurgy, medical, pharmaceutical, and food chemical industries and other industries.


Technical Parameters

Filter ModelCapacity(m3/min)Number of filter elementsFilter element modelImport and Export(Threaded Flange)）HA Barrel diameter
BXG-010*11E-161"36415076
BXG-020*21E-201"36416076
BXG-030*31E-241.5"40216089
BXG-050*51E-281.5"57221089
BXG-070*71E-321.5"57226089
BXG-110*11 1E-362"710340102
BXG-140*151E-40DN65710380133
BXG-180*201E-44DN801000380133
BXG-220*251K430DN80950380159
BXG-350*401K620DN10011501150159
