Air compressor post-processing filter Industrial precision filter BXG-350*

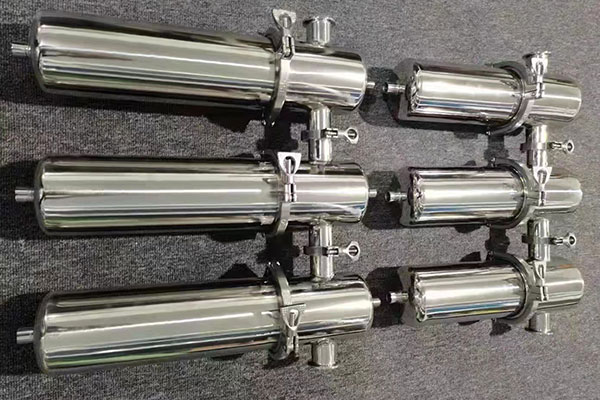

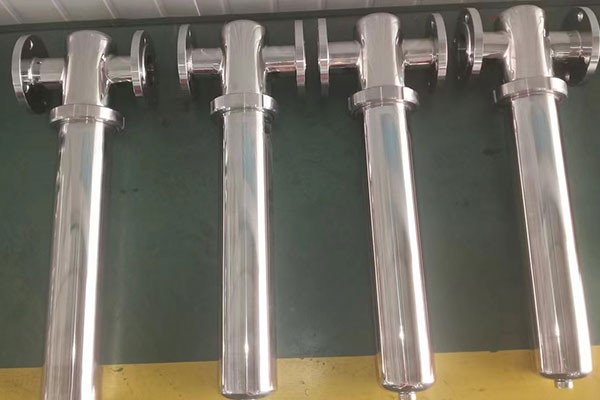

BXG series stainless steel precision filter (1.6Mpa)

The shell is made of 304 stainless steel, the inner and outer layers are mirror polished, anti-corrosion, low resistance, widely used in various industrial gas filtration applications and gas sterilization treatment, such as semiconductor, metallurgy, medical, pharmaceutical, and food chemical industries and other industries.


Technical Parameters

Filter Model

Capacity

(m3/min)

Number of

filter elements

Filter element

model

Import and

Export

(Threaded

Flange)）

HA

Barrel

diameter

BXG-010*11E-161"36415076
BXG-020*21E-201"36416076
BXG-030*31E-241.5"40216089
BXG-050*51E-281.5"57221089
BXG-070*71E-321.5"57226089
BXG-110*11 1E-362"710340102
BXG-140*151E-40DN65710380133
BXG-180*201E-44DN801000380133
BXG-220*251K430DN80950380159
BXG-350*401K620DN10011501150159
