High efficiency cyclone water separator precision filter QS05

Installing an air-water separator before compressed air filters and drying equipment can remove 99% of liquid water, enabling downstream purification equipment to perform better. The unique double-sta

  • Working Pressure:7~16 bar[ bar ]102~232[ psig ]
  • Free Air Delivery:21~1059[ cfm ]0.6~30[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

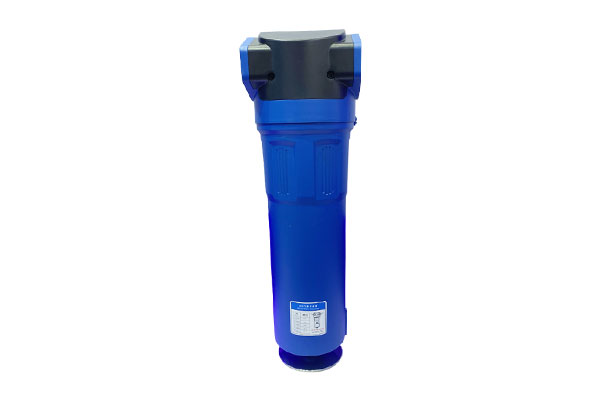

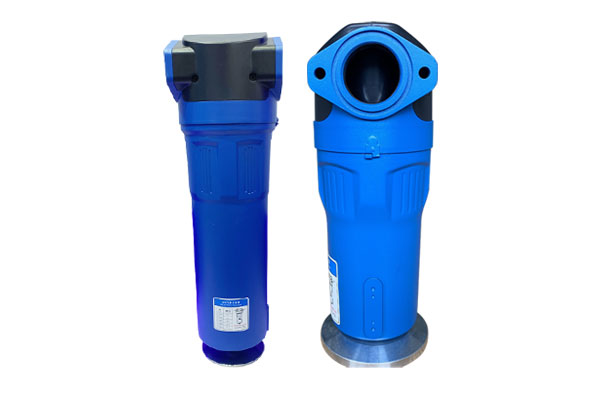

High efficiency cyclone water separator precision filter QS05


Installing an air-water separator before compressed air filters and drying equipment can remove 99% of liquid water, enabling downstream purification equipment to perform better. The unique double-stage cyclone separation design of the Rocky gas-water separator makes it more efficient than traditional gas-water separators. The optional installation position of the air-water separator is on the air compressor, before the aftercooler, and after the air receiver.

Technical Parameters

ModelFlow m³/mConnection sizeHdiameterWAB
QS010.6-2  3/4"  23588953251
QS023.0-5.0 1"27688953251
QS036.0-8.01-1/2"3021101233865
QS059.0-15.01-1/2"4201101233865
QS1016.0-30.02"5451561704682
