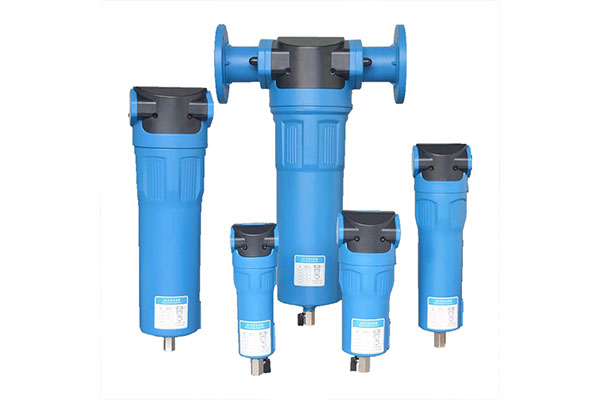

Precision filter air compressor air-water separator QS01

Installing an air-water separator before compressed air filters and drying equipment can remove 99% of liquid water, enabling downstream purification equipment to perform better. The unique double-sta

  • Working Pressure:7~16 bar[ bar ]102~232[ psig ]
  • Free Air Delivery:21~1059[ cfm ]0.6~30[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]

Product Details

Installing an air-water separator before compressed air filters and drying equipment can remove 99% of liquid water, enabling downstream purification equipment to perform better. The unique double-stage cyclone separation design of the Rocky gas-water separator makes it more efficient than traditional gas-water separators. The optional installation position of the air-water separator is on the air compressor, before the aftercooler, and after the air receiver.

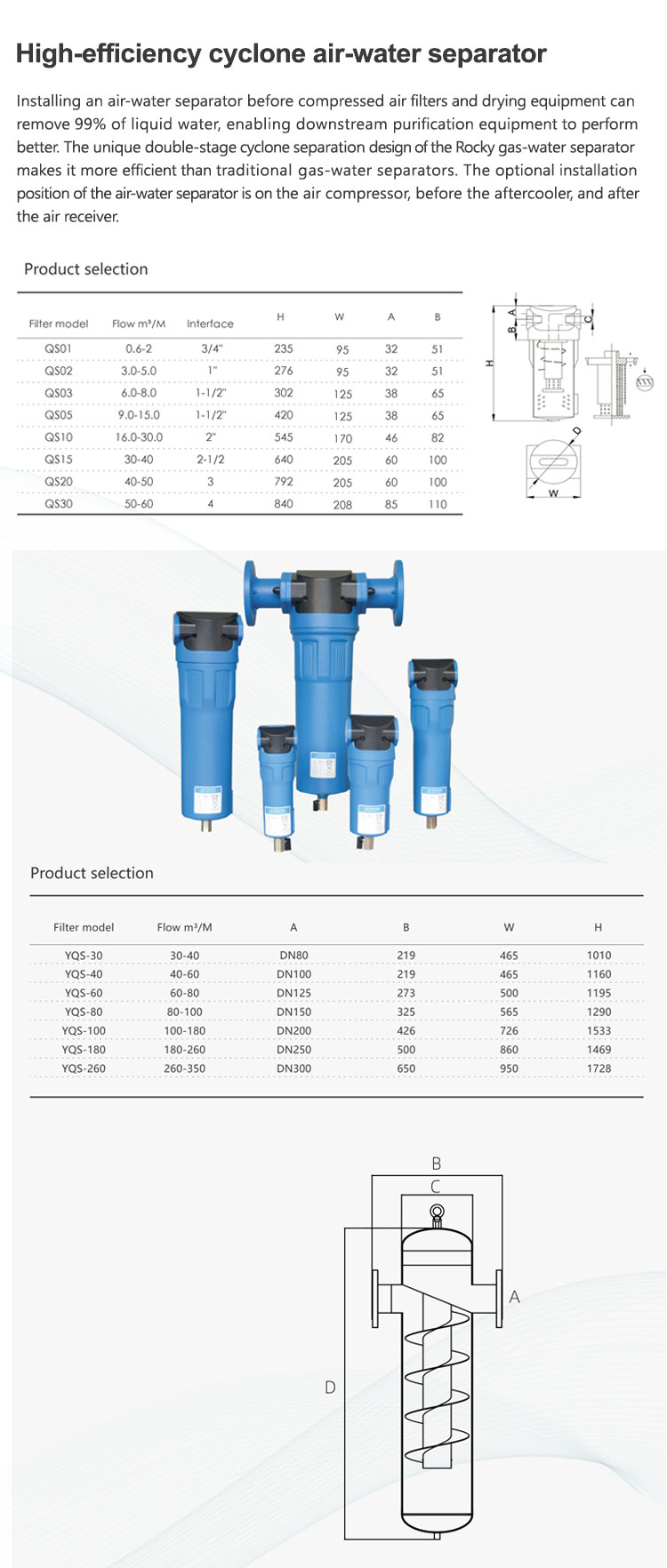

Technical Parameters

ModelFlow m³/MConnection sizeHdiameterWAB
QS010.6-2  3/4"  23588953251
QS023.0-5.0 1"27688953251
QS036.0-8.01-1/2"3021101233865
QS059.0-15.01-1/2"4201101233865
QS1016.0-30.02"5451561704682
