20~50hp Screw Air Compressor Parts Head Rotorcomp Airend EVO2-NK

Our unique EVO®-NK series compact head is an oil injected screw compressor airframe that houses the main components of the compressor system. This is to assemble a stable and reliable, highly integrat

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:60[ cfm ]1.6[ m3/min ]
  • Working Power:4~11[ kw ]5~15[ hp ]

Product Details

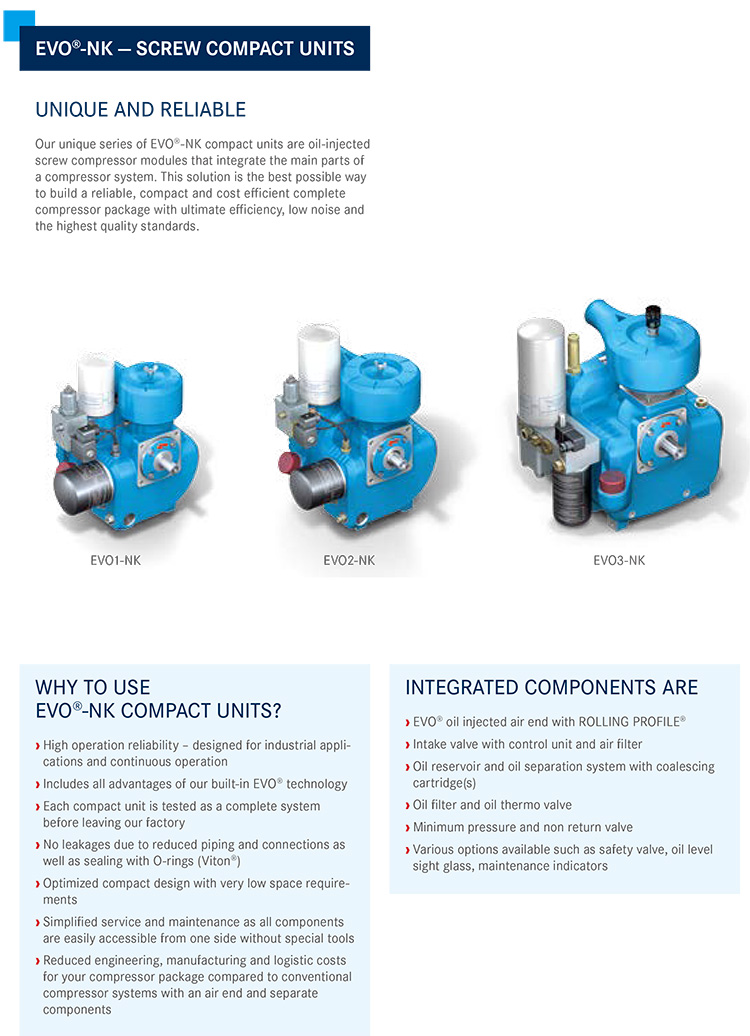

Our unique EVO®-NK series compact head is an oil injected screw compressor airframe that houses the main components of the compressor system. This is the best way to assemble a robust, highly integrated and cost-optimized compressor package, while providing high efficiency, low noise and high quality.

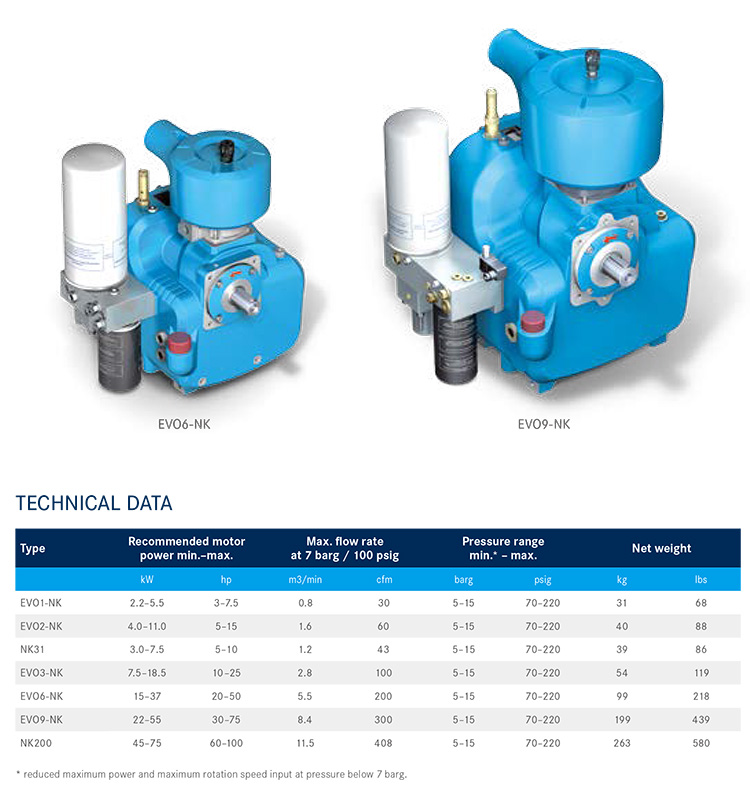

Technical Parameters

Model

Motor Power(min~max)

Max Flow rate

Pressure Range

Weight


kW

HP

m3/min

cfm

bar

psi

kg

EVO1-NK

2.2~5.5

3~7.5

0.8

30

5~15

7~220

31

EVO2-NK

4~11

5~15

1.6

60

5~15

7~220

40

NK31

3~7.5

5~10

1.2

43

5~15

7~220

39

EVO3-NK

7.5~18.5

10~25

2.8

100

5~15

7~220

54

EVO6-NK

15~37

20~50

5.5

200

5~15

7~220

99

EVO9-NK

22~55

30~75

8.4

300

5~15

7~220

199

NK200

45~75

60~100

11.5

408

5~15

7~220

263
