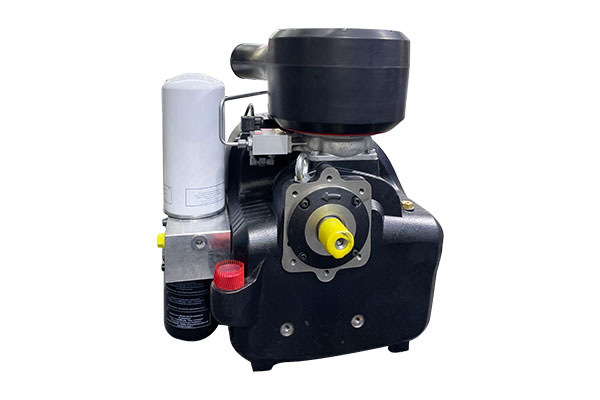

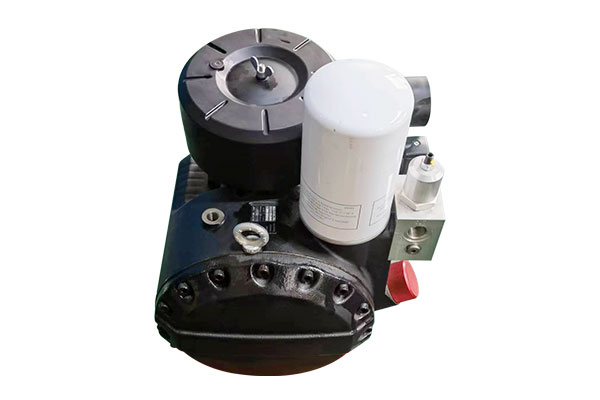

Screw Air Compressor Parts Head Rotorcomp Air End EVO6-NK

Our unique EVO®-NK series compact head is an oil injected screw compressor airframe that houses the main components of the compressor system. This is the best way to assemble a robust, highly integrat

  • Working Pressure:5~16[ bar ]72.5~232[ psig ]
  • Free Air Delivery:200[ cfm ]5.5[ m3/min ]
  • Working Power:15~37[ kw ]20~50[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Our unique EVO®-NK series compact head is an oil injected screw compressor airframe that houses the main components of the compressor system. This is the best way to assemble a robust, highly integrated and cost-optimized compressor package, while providing high efficiency, low noise and high quality.


Technical Parameters

Model

Motor Power(min~max)

Max Flow rate

Pressure Range

Weight


kW

HP

m3/min

cfm

bar

psi

kg

EVO1-NK

2.2~5.5

3~7.5

0.8

30

5~15

7~220

31

EVO2-NK

4~11

5~15

1.6

60

5~15

7~220

40

NK31

3~7.5

5~10

1.2

43

5~15

7~220

39

EVO3-NK

7.5~18.5

10~25

2.8

100

5~15

7~220

54

EVO6-NK

15~37

20~50

5.5

200

5~15

7~220

99

EVO9-NK

22~55

30~75

8.4

300

5~15

7~220

199

NK200

45~75

60~100

11.5

408

5~15

7~220

263
