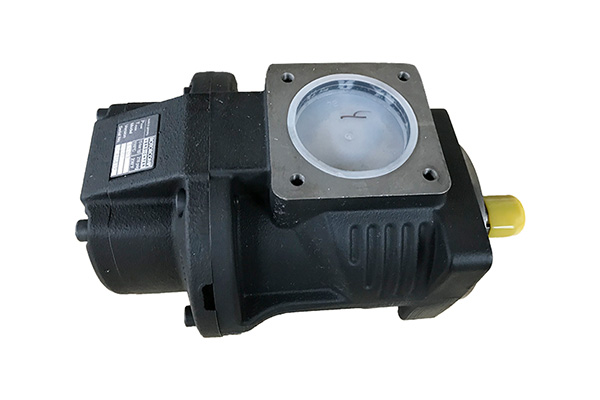

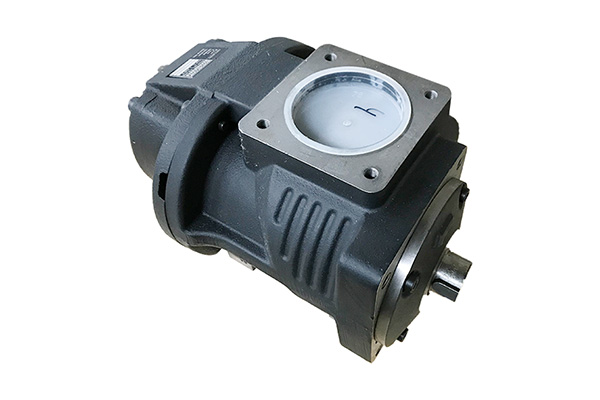

22~55kW Rotary Screw End Pump Screw Compressor Head Rotorcomp Air End EVO9

Our oil-injected screw air ends create theheart of your compressor system. Usedwith our wide range of components, you canbuild the perfect compressor package withultimate efficiency, low noise, at the

  • Working Pressure:5~16[ bar ]72.5~232[ psig ]
  • Free Air Delivery:29.7[ cfm ]8.4[ m3/min ]
  • Working Power:22~55[ kw ]30~75[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

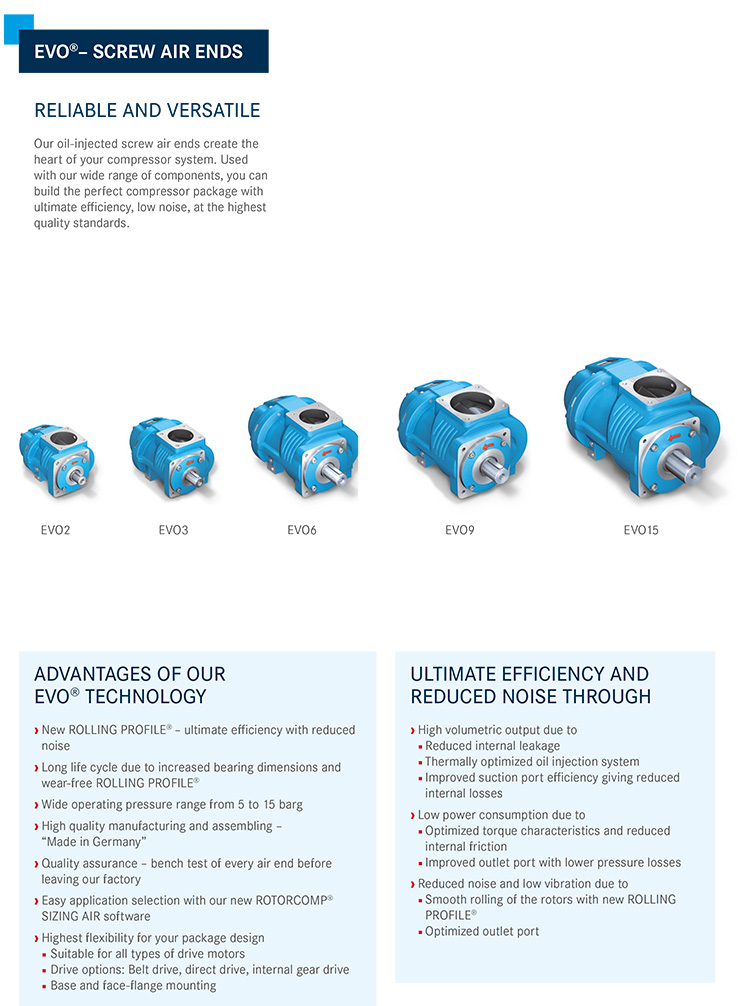

RELIABLE AND VERSATILE

Our oil-injected screw air ends create theheart of your compressor system. Usedwith our wide range of components, you canbuild the perfect compressor package withultimate efficiency, low noise, at the highestquality standards.

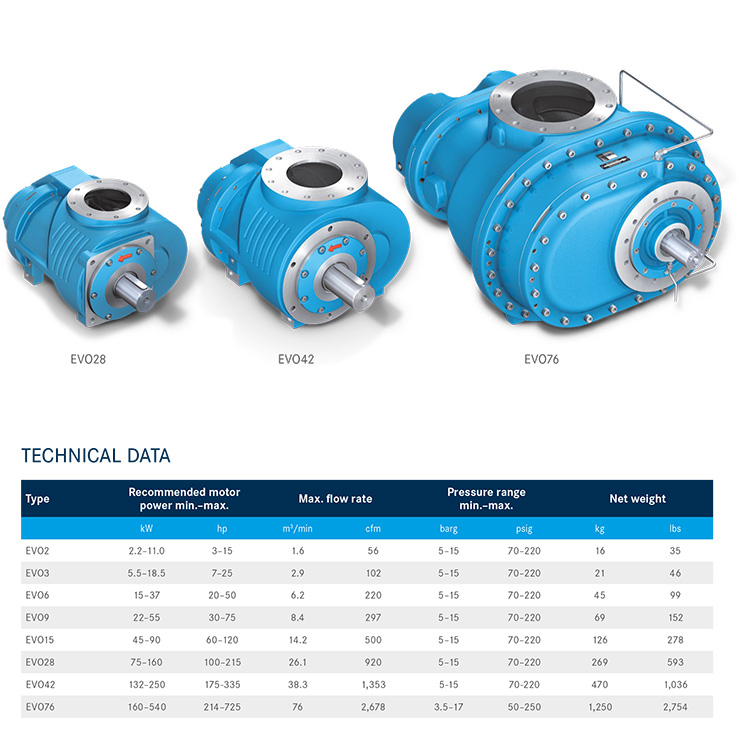

Technical Parameters

Model

Motor Power(min~max)

Max Flow rate

Pressure Range

Weight


kW

HP

m3/min

cfm

bar

psi

kg

EVO2

2.2~11

3~15

1.6

56

5~15

7~220

16

EVO3

5.5~18.5

7~25

2.9

102

5~15

7~220

21

EVO6

15~37

20~50

6.2

220

5~15

7~220

45

EVO9

22~55

30~75

8.4

297

5~15

7~220

69

EVO15

45~90

60~120

14.2

500

5~15

7~220

126

EVO28

75~160

100~215

26.1

920

5~15

7~220

269

EVO42

132~250

175~335

38.3

1353

5~15

7~220

470

EVO76

160~540

214~725

76

2678

3.5~17

50~250

1250
