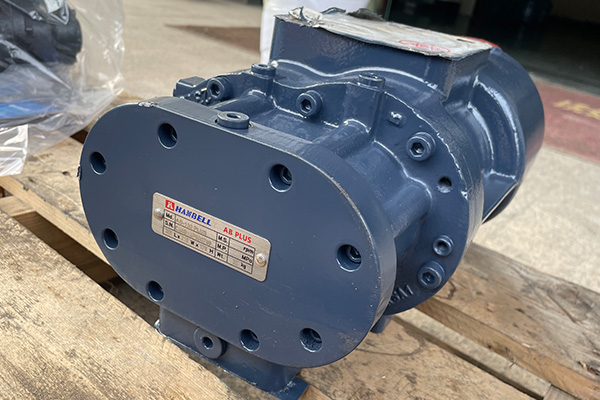

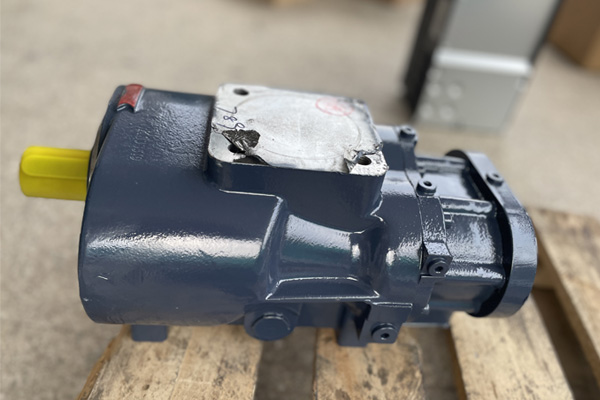

15kW 20HP Screw Compressor Head Hanbell Air End AB-130

Pressure Range : 6.0~16.0 bar.g Eight bearing design, long life and good stability High application pressure. Market application for more than 15 years, good reputationbenchmarking with international

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:70.6[ cfm ]2[ m3/min ]
  • Working Power:15[ kw ]20[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Pressure Range : 6.0~16.0 bar.g

Eight bearing design, long life and good stability

High application pressure.

Market application for more than 15 years, good reputationbenchmarking with international brand heads



Technical Parameters

Technical Parameter (8bar)

ModelPower (kW)Rotating speed (rpm)Air Delivery (m3/min)Shaft power (kW)Specific power (kW/m'/min)S.F.Dimension(mm)Weight(kg)
AB-077 (Belt)7.5342017.37.40.97262*180*15025
AB-077 (Belt)1152001.5117.21262*180*15025
AB-130 (Belt)153420214.67.20.97397*210*17040
AB-21018.529502.919.46.71.05445*250*20062
AB-2402229503.522.76.41.03445*261*20764
AB-350RS3029504.733.17.11.1500*350*300118
AB-4203729506.238.26.11.03480*350*280109
AB-480R4529507.147.56.71.05550*370*299145
AB-600R5529509.157.66.31.05630*350*300155
AB-780R75295011.973.36.10.98650*380*350195
AB-83075295012.980.66.21.07

AB-1030R90295014.8956.41.08772*402*350260
AB-1200R110295019.4115.55.91.05810*575*412378
AB-1320132295021.4139.56.51.06863*610*442490
AB-1450R132295021.8135.86.21.03630*485*409220
AB-1560160295023.9151.66.30.95900*630*452550
AB-1560R160295024151.66.30.95900*630*452550
AB-1900R185295029.8186.66.2101900*630*452550
AB-2600250295040.7260.66.41.041164*748*535975
AB-3300315295050323.46.41.031164*748*535975
