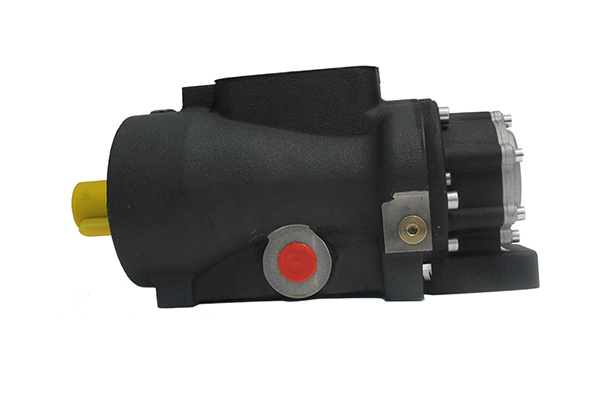

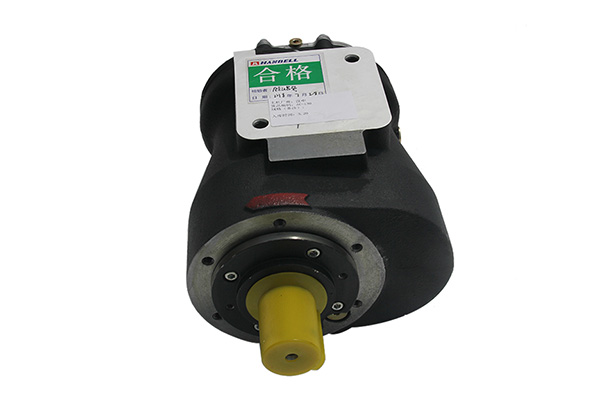

HANBELL Air End AC-130 Screw Compressor Head/Pump

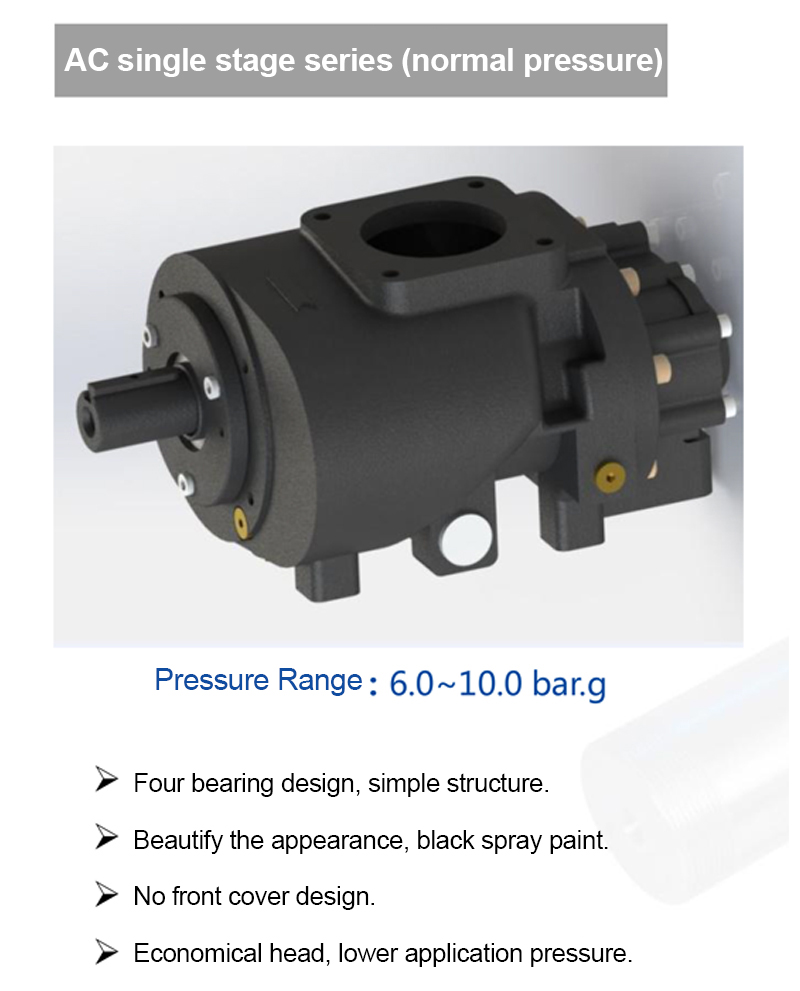

Application pressure range: 6.0~10.0 bar.g Four bearing design, simple structure and beautified appearance, black spray paint and no front cover design Economical machine head, lower application press

Working Pressure:7~16[ bar ]101.5~232[ psig ]
Free Air Delivery:82.6[ cfm ]2.34[ m³/min ]
Working Power:15[ kw ]20[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky High Pressure Gas Booster Compressor Catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

HANBELL Air End AC-130 Screw Compressor Head/Pump

Product Details

Technical Parameters

Technical Parameter (8bar)
Model	Power (kW)	Rotating speed (rpm)	Air Delivety (m3/min)	Shaft power (kW)	Specific power (kW/m3/min)	Connection method	Dimension(mm)	Weight(kg)
AC-077	7.5	3600	1.03	7.3	7.09	Belt/PM	282178140	18
AC-077	11	5200	1.59	11	6.92	Belt/PM	282178140	18
AC-130	11	3000	1.92	12.7	6.61	Belt/PM	380200170	50
AC-130	15	3600	2.34	15.6	6.67	Belt/PM	380200170	50
AC-160E	15	3000	2.3	15	6.52	Direct Driven		50
AC-240	22	3000	3.59	23	6.41	Direct Driven	405260207	55
AC-420S	30	3000	4.5	31	6.89	Direct Driven	453353280	100
AC-420	37	3000	6.28	38.9	6.19	Direct Driven	453353280	100
AC-480R	45	3000	7.38	45.7	6.19	Direct Driven	550370300	145
AC-600R	55	3000	9.25	57.6	6.23	Direct Driven	550370300	145
AC-780R	75	3000	12.6	74.7	5.93	Direct Driven	550370300	145
AC-1030R	90	3000	15.2	96	633	Direct Driven	500485409	220
AC-1200R	110	3000	19.54	119	6.09	Direct Driven	500485409	220
AC-1320	132	3000	21.83	142.4	6.52	Direct Driven	500485409	220
AC-1450R	132	3000	21.76	135.7	6.24	Direct Driven	500485409	220
