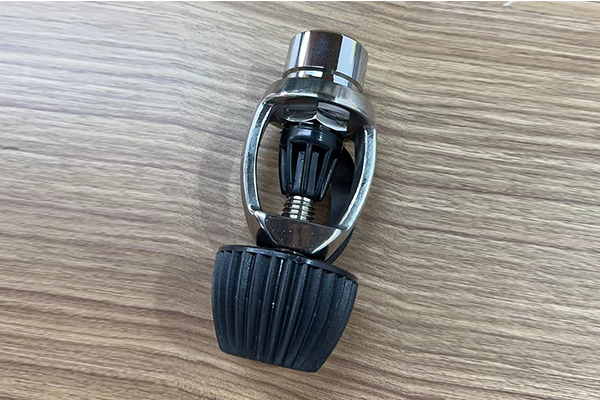

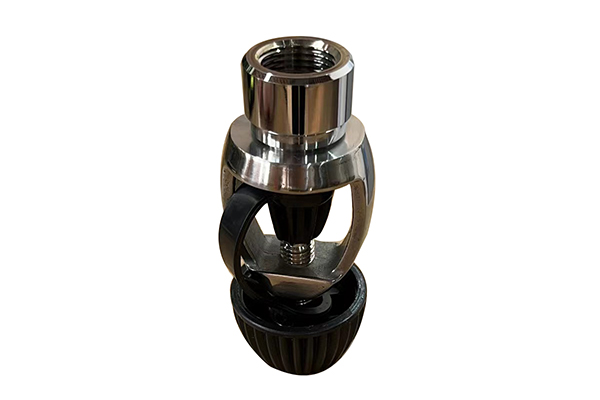

Din to Yoke Adapter for Fire/Diving Cylinders

The special conversion inflation connector for diving cylinder inflation is one of the required accessories for fire departments and high-pressure inflation stations. The connection thread size of the

  • Working Pressure:200~300[ bar ]2900~4500[ psig ]
  • Free Air Delivery:3.5~18[ cfm ]0.1~0.5[ m3/min ]
  • Working Power:2.2~11[ kw ]3~15[ hp ]

Product Details

The special conversion inflation connector for diving cylinder inflation is one of the required accessories for fire departments and high-pressure inflation stations. The connection thread size of the conversion connector is G5/8, which can be used for Din to Yoke conversion of technical diving first-level head, air pressure Inflatable conversion, dedicated conversion joint for diving respirators.


Product features
1. Patented design, anti-acid and anti-seawater corrosion
2. Unaffected by water depth, smooth breathing
3. Not affected by air source sharing
4. Smaller size
5. It matches the inflation interface of the fire brigade



Technical Parameters

Product nameDin to Yoke adapter
Model ZJT-2
Pressure225~330 bar
Dimensions60*60*115mm
Weight0.36kg
ApplicationPaintball / Scuba Diving / Fire Fighting
MOQ1
After Warranty ServiceOnline Support
