15HP Portable Screw Air Compressor de ar RMZY-15AS Air Compressor

Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.

  • Working Pressure:20[ bar ]290[ psig ]
  • Free Air Delivery:37[ cfm ]1.05[ m3/min ]
  • Working Power:11[ kw ]15[ hp ]

Product Details

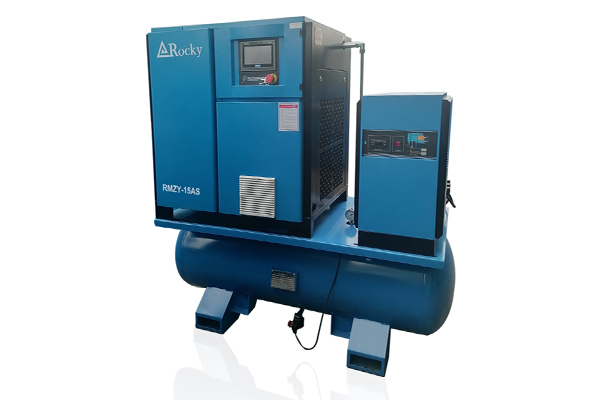

ROCKY Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter.

RMZY-15A (2).jpg

Product features

1. Latest high-tech screw air end, ensure high stability, smoother cutting and better-looking cutting surface.

2. Multiple high-efficiency oil and water removal devices ensure the compressed air entering the laser cutting machine is dry and oil-less.

3. Thermostatic control minimizes the moisture content of the air, ensuring system reliability & lifetime

4. Equipped with a large-capacity air storage tank, which stabilizes the air supply pressure and condensates the moisture.

5. The integrated automatic drainage system improves the purity and dryness of the compressed air, significantly keeps the laser lens clean away from contamination.

6. All-in-one design, user-friendly,easy to use and transport.



Technical Parameters

High Pressure Screw Air Compressor for Fiber Laser Cutting Application
ModelAir Delivery (m3/min)        maxExhaust
pressure
(Bar)            max
Power
 (kW/HP)
Noise
(Db)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
Exhaust
pressure
dew point (℃)
Exhaust dust
content (μm)
Exhaust oil
content (ppm)
Gas storage
tank capacity (L)
RMZY-15A1.051611/1565G3/41800*900*17804302~100.010.001400
RMZY-20A1.521615/2065G3/41800*900*17804502~100.010.001400
RMZY-30A2.411622/3068G3/41880*900*19805502~100.010.001400
RMZY-30AA2.411622/3070G3/42250*900*2080700-200.010.001400
RMZY-50AA3.91637/5070G3/42660*1000*2050980-200.010.001600
RMZY-15AS1.052011/1565G3/41800*900*17804602~100.010.001400
RMZY-20AS1.522015/2065G3/41800*900*17804802~100.010.001400
RMZY-30AS2.412022/3068G3/41880*900*19806002~100.010.001400
RMZY-30AAS2.412022/3070G3/42250*900*2080780-200.010.001400
RMZY-50AAS3.92037/5070G3/42660*1000*20501080-200.010.001600
