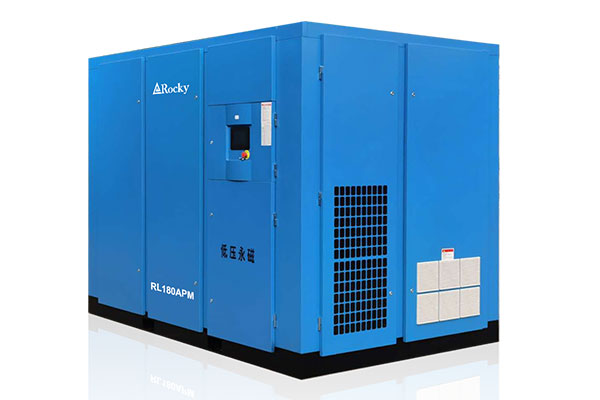

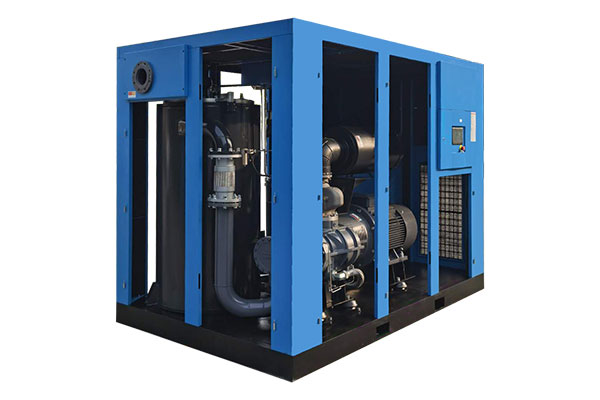

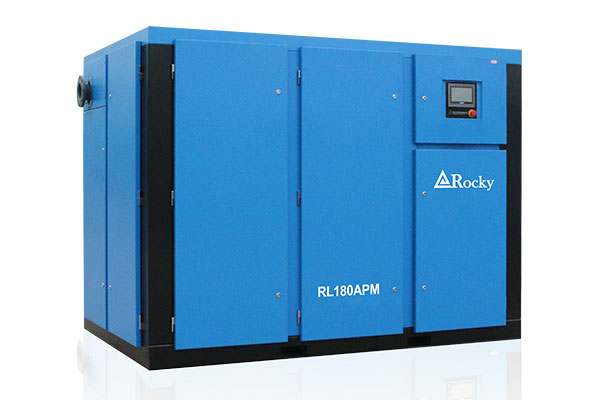

2~5bar Low Pressure Screw Air Compressor for Textile Industry

1. Adopt big rotor and low speed to ensure the high performance of the machine; 2. Increase oil and gas separation equipment to ensure that the export oil content is ≤2ppm; 3. The air source of the lo

Working Pressure:2~5[ bar ]29~72.5[ psig ]
Free Air Delivery:282.4~2559.3[ cfm ]8~60[ m³/min ]
Working Power:37~160[ kw ]50~220[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

2~5bar Low Pressure Screw Air Compressor for Textile Industry

Product Details

2~5bar Low Pressure Screw Air Compressor Product feature

1.Big rotor, low RPM, high performance.
2.Touchable LED controller, intelligent control, high-ekciency motor, production level IP54.
3.Patented airend design, ensure best compression ratio.
4.Long time continuous working hours for textile industry, programmed pre-alert, not stop immediately, to ensure enough time for machine halt.
5.No need to clean the nozzle frequently because the puri"cation process is designed at the very beginning.

Technical Parameters

Low-pressure PM VSD Screw air compressor Technical Parameters
Model	Air Delivery (m3/min)	Working pressure (Mpa)	Power (kW)	Noise (Db)	Outlet diameter	Dimension (mm)	Weight (Kg)
Model	Air Delivery (m3/min)	Working pressure (Mpa)	Power (kW)	Noise (Db)	Outlet diameter	LW H	Weight (Kg)
RL50APM	11.8	0.3	37	72	DN80	210013001650	1300
	10.0	0.4	37	72	DN80	210013001650	1300
	8.0	0.5	37	72	G2	170012001550	900
RL60APM	17.0	0.2	45	72	DN100	250016501900	2500
	13.5	0.3	45	72	DN80	210013001650	1500
	11.8	0.4	45	72	DN80	210013001650	1500
	10.0	0.5	45	72	G2	170012001550	950
RL75APM	20.5	0.2	55	72	DN125	250016501900	2900
	17.0	0.3	55	72	DN100	250016501900	2900
	14.2	0.4	55	72	DN80	210013001650	1600
	13.3	0.5	55	72	G2	210013001650	1550
RL100APM	27.0	0.2	75	76	DN125	250016501900	3000
	24.0	0.3	75	76	DN100	250016501900	3000
	20.5	0.4	75	76	DN100	250016501900	2900
	17.0	0.5	75	76	G2	210013001650	1550
RL125APM	34.0	0.2	90	76	DN125	300019001950	3500
	28.0	0.3	90	76	DN100	250016501900	3100
	24.0	0.4	90	76	DN100	250016501900	3000
	20.0	0.5	90	76	DN80	250016501900	2950
RL150APM	43.0	0.2	110	76	DN200	360022002200	5300
	34.0	0.3	110	76	DN125	300019001950	4000
	29.6	0.4	110	76	DN100	300019001950	3500
	24.0	0.5	110	76	DN80	300019001950	3200
RL180APM	52.0	0.2	132	76	DN200	360022002200	5800
	42.0	0.3	132	76	DN125	300019001950	4300
	36.5	0.4	132	76	DN100	300019001950	4100
	30.5	0.5	132	76	DN80	300019001950	3700
RL220APM	60.0	0.2	160	78	DN200	360022002200	6500
	50.0	0.3	160	78	DN200	360022002200	6200
	44.0	0.4	160	78	DN100	300019001950	4300
	37.0	0.5	160	78	DN100	300019001950	4000
