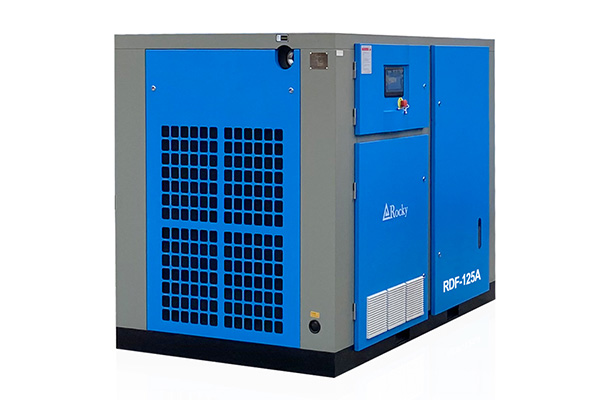

132HP 8 bar Variable Speed Rotary Screw Air Compressor RDF-125A

The intelligent control of the permanent magnet variable frequency air compressor makes it have excellent reliability and efficiency. This series of compressors uses permanent magnet high-efficiency m

  • Working Pressure:8~13[ bar ]116~189[ psig ]
  • Free Air Delivery:176.5~547[ cfm ]5~15.5[ m3/min ]
  • Working Power:90[ kw ]125[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details


Product features

1. Super IE4 class, 97% high-efficiency energy-saving PM motor.

2. Latest technology screw air end, more compact and stable.

3. Intelligent frequency conversion technology, energy saving  up to 42%.

4. Internet remote control, monitor your compressor anytime,  anywhere.

Technical Parameters

Intelligent VSD Screw Air Compressor
ModelAir Delivery (m3/min)Power
(kW)		Noise
(dB)		Outlet
diameter		Dimension (mm)Weight
  (Kg)
8bar10bar13barL * W * H
RDF-10A0.5-1.20.4-1.00.3-0.77.563G3/4900*650*860190
RDF-15A0.6-1.70.5-1.60.4-1.01165G3/41150*750*960320
RDF-20A1.0-2.40.8-2.10.7-1.61565G3/41150*750*960340
RDF-30A1.5-3.71.3-3.21.1-2.82268G11350*850*1120430
RDF-40A2.0-5.01.6-3.91.4-3.43068G11500*1000*1350600
RDF-50A2.5-6.22.2-5.62.0-4.93769G1 1/21500*1000*1350650
RDF-60A3.0-7.32.4-6.02.3-5.94570G1 1/21500*1000*1350730
RDF-75A3.8-9.53.5-8.73.0-7.35570G21700*1200*1550950
RDF-100A5.1-12.84.5-11.33.7-9.27572G21700*1200*15501050
RDF-125A6.2-15.55.4-13.65.0-12.59072G22100*1400*16501420
RDF-150A7.8-19.67.1-17.86.2-15.511072DN652500*1650*19002200
RDF-175A9.3-23.27.8-19.57.1-17.813272DN652500*1650*19002400
RDF-220A11.1-27.89.2-23.08.0-20.016072DN803000*1900*19503650
RDF-250A12.5-31.211.0-27.510.3-25.818572DN803000*1900*19503950
RDF-270A13.6-34.012.2-30.511.2-28.020076DN803600*2200*22004200
RDF-300A14.0-35.012.8-32.012.0-30.022076DN1003600*2200*22004600
RDF-350A16.6-41.515.2-38.014.0-34.925076DN1003600*2200*22005900
RDF-375A20.2-50.618.4-46.016.6-41.528082DN1003600*2200*22006000
RDF-420A22.2-55.920.0-50.116.8-42.031582DN1254600*2300*24307800
RDF-475A26.0-65.422.0-55.118.4-46.035585DN1254600*2300*24308200
