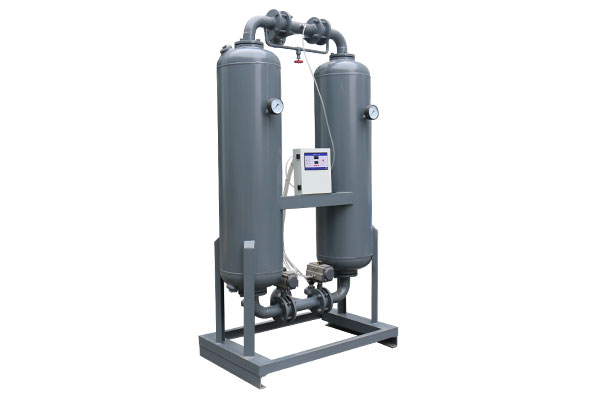

Rocky Heatless Desiccant Compressed Air Dryer SXD-15 Adsorption Dryer

Compared to heatless dryer, the heated desiccant air dryer has heater in system . The desiccant adsorb the moisture under the working pressure by heating compressed air on regeneration process. By th

  • Working Pressure:5~13/13~40bar (Optional)[ bar ]72.5~188.5[ psig ]
  • Free Air Delivery:600[ cfm ]17[ m3/min ]
  • Working Power:0.2[ kw ]0.3[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Rocky Heatless Desiccant Compressed Air Dryer SXD-15 Adsorption Dryer


Heatless dryer adopts pressure swing adsorption technology, the desiccant has different adsorb performances under different  working pressure. The desiccant adsorb the moisture under the working pressure and desorption under the atmospheric  pressure. The system with two towers for the periodic auto switching, one tower on adsorption, the other one on regeneration,  simple structure and easy to maintenance.




Technical Parameters

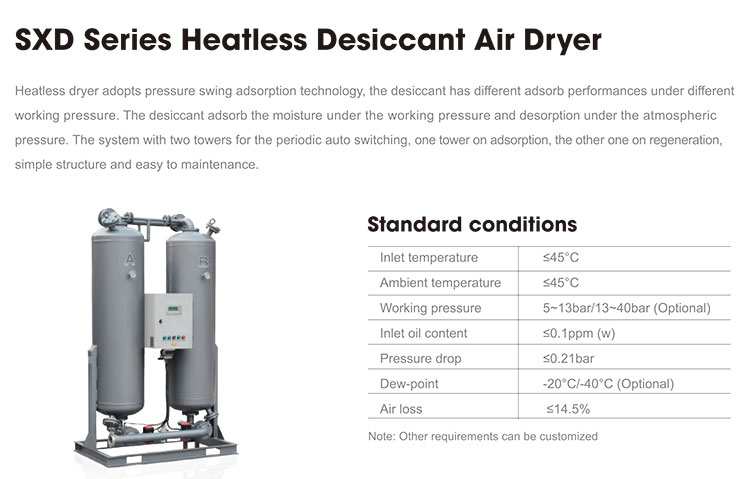

SXD Series Heatless desiccant air dryer
ModelAir Delivery (m3/min)Voltage
(V/HZ)

Power

 (kW)

Inlet/Outlet
(PT)		Dimension (mm)

Weight

 (Kg)

L*W*H
SXD-011.2220V/50HZ0.2 RC1”670*460*1305105
SXD-022.4220V/50HZ0.2 RC1”670*450*1485135
SXD-033.2220V/50HZ0.2 RC1”850*500*1385187
SXD-066.5220V/50HZ0.2 RC1 1/2”1000*700*1700238
SXD-088.5220V/50HZ0.2 RC2”1100*700*2050282
SXD-1011.5220V/50HZ0.2 RC2”1200*700*2030466
SXD-1213.5220V/50HZ0.2 RC2”1300*700*2280520
SXD-1517220V/50HZ0.2 DN651300*820*2480670
SXD-2023220V/50HZ0.2 DN801380*820*2530798
SXD-2527220V/50HZ0.2 DN801650*900*2450980
SXD-3034220V/50HZ0.2 DN801700*955*24101278
SXD-4045220V/50HZ0.2 DN1001950*1000*25501624
SXD-5055220V/50HZ0.2 DN1002010*1170*26501624
SXD-6065220V/50HZ0.2 DN1002160*1470*27052650
SXD-8085220V/50HZ0.2 DN1252420*1550*28003520
SXD-100110220V/50HZ0.2 DN1502500*1650*28004320
SXD-120130220V/50HZ0.2 DN1502650*1650*28004750
SXD-150155220V/50HZ0.2 DN2002800*1700*29005260
