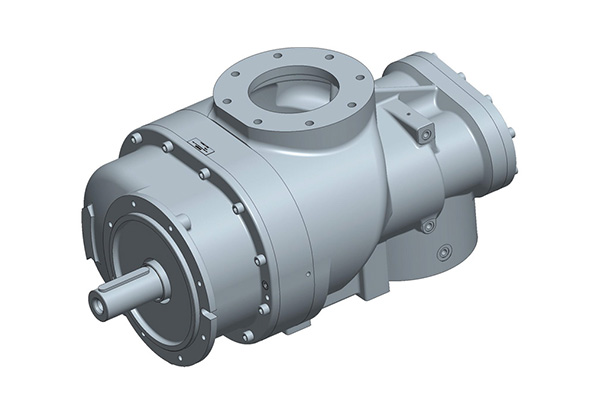

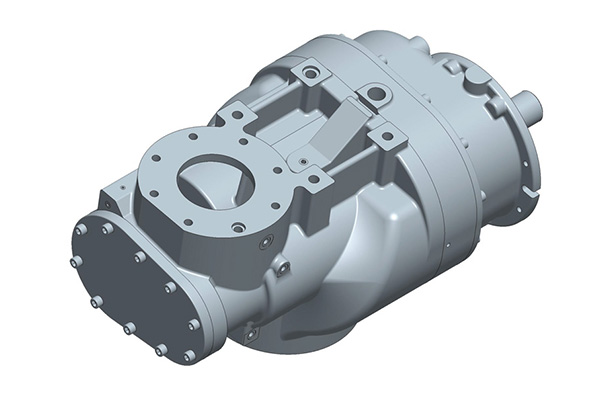

Original Ingersoll Rand Air End Screw Block GHH-Rand CF128HG

The CF128HG is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.

  • Working Pressure:87~232[ bar ]6~16[ psig ]
  • Free Air Delivery:741.3[ cfm ]21[ m3/min ]
  • Working Power:220[ kw ]293[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

The CF128HG is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.



Technical Parameters

Country of originGermany
ManufacturerGHH-RAND
Capacity21m3/min
Maximum operating pressure17 bar (atm)
Power220 kW
Manufacturer code / articleCF128HG
Weight280 kg
