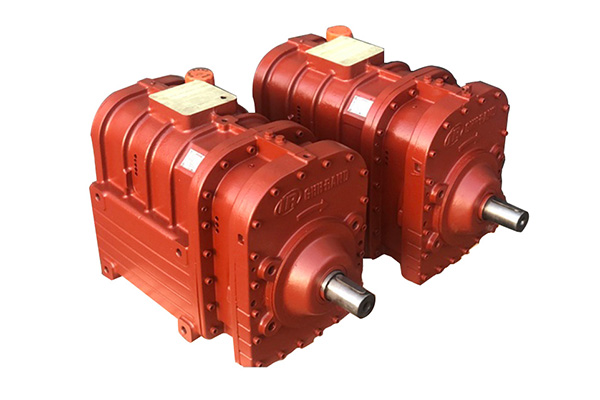

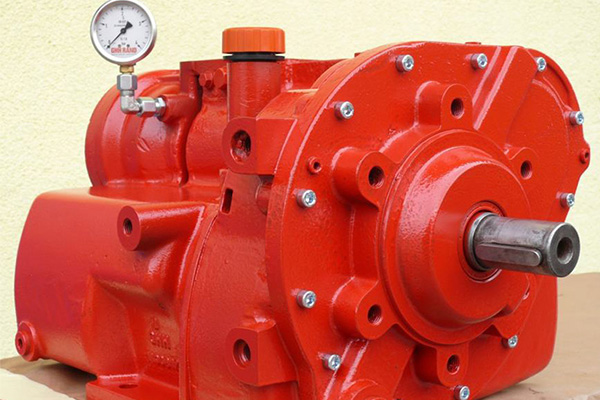

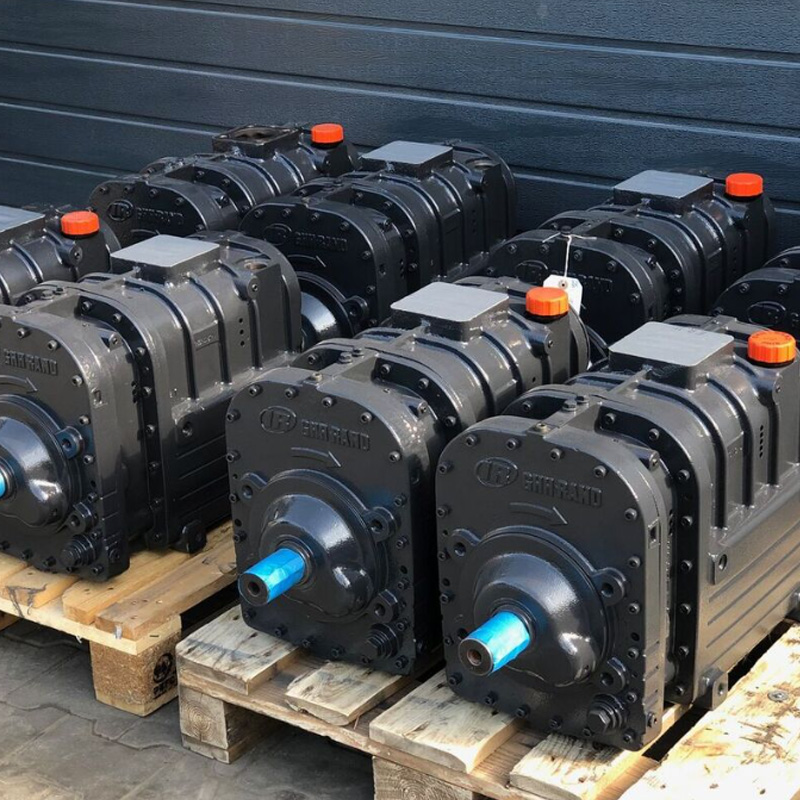

Original Ingersoll Rand GHH Screw Air Compressor Air End CS85

The CS85 is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.

  • Working Pressure:1.5~2.5[ bar ]21.75~36.25[ psig ]
  • Free Air Delivery:236.5~579[ cfm ]6.7~16.4[ m3/min ]
  • Working Power:250~550[ kw ]333~733[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

The CS85 is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.


Technical Parameters

ModelGHH CS85
SystemScrew
Flow rate (m3/h) at 1.5 bar435-989
Flow rate (m3/h) at 2 bar420-975
Flow rate (m3/h) at 2.5 bar404-962
Speed range (rpm)1000-2000
Suction conditions1 bar-20C
Maximum pressure2,5 bar
Power at coupling at 2 bar25,0-55,4 kW
Minimum mounting space100 cm
Soundlevel installation81 dBA
Dimensions installation950x750x750mm
