90-160 Kw Dry Oil Free Scerw Compressor Airend Ghh Rand CDA96

Dry running screw compressor air ends Decades of experience in the construction of compressor design enable us to deliver leading oil free air screw compressor air ends. The compressor stage is direct

  • Working Pressure:4.5~11.5[ bar ]65.25~167[ psig ]
  • Free Air Delivery:441~1059[ cfm ]12.5~30[ m3/min ]
  • Working Power:90~160[ kw ]125~215[ hp ]

Product Details

Dry running screw compressor air ends

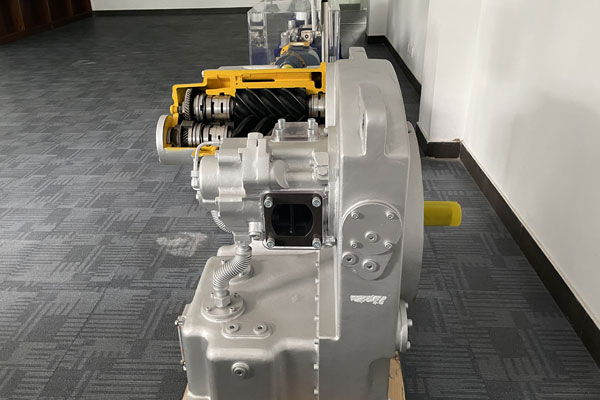

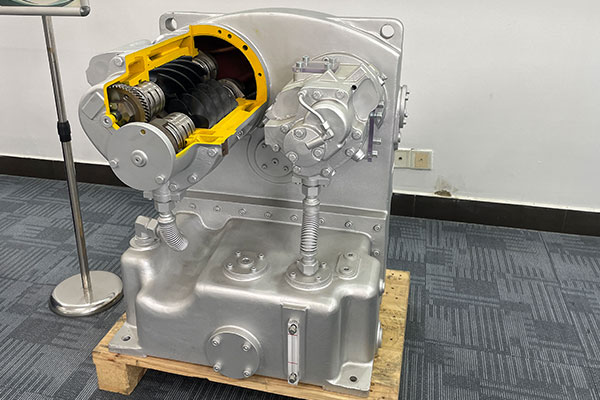

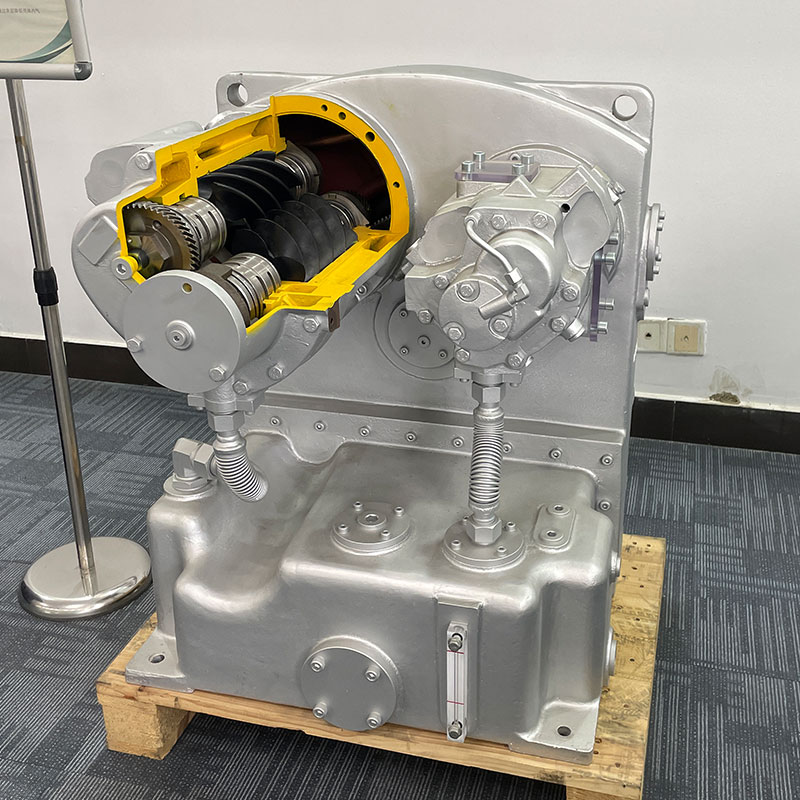

Decades of experience in the construction of compressor design enable us to deliver leading oil free air screw compressor air ends. The compressor stage is directly flanged onto a gearbox, resulting in an integral solution including oil-tank, oil-pump and oil-filter. Protection of corrosion in the compression chamber is reassured with the application of unique ULTRACOAT. The second stage or the high-pressure stage is flanged onto the gearbox beside the low pressure stage. Mounted on anti-friction bearings the rotors run absolutely free without contact.


Technical Parameters

ModelCDA96
Volume Flow

750 ~1805 m3/h

Discharge Pressure

4.5~11.5bar

Power

90-160 kW

Diemension760*730*770mm
Weight530kg
