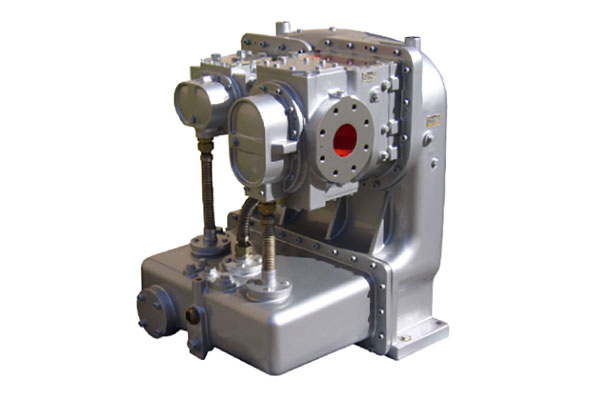

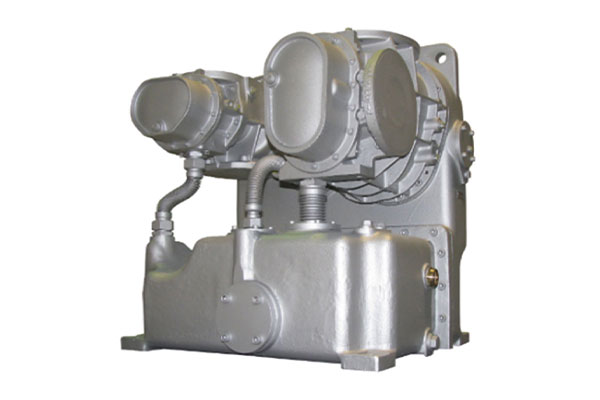

Oil-free screw compressor head/air end Ghh Rand CD8D

The GHH-RAND CD8D is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.

  • Working Pressure:4.5~11.5[ bar ]65.3~167[ psig ]
  • Free Air Delivery:198~461[ cfm ]5.6~13[ m3/min ]
  • Working Power:29~97.3[ kw ]38~130[ hp ]

Product Details

The GHH-RAND CD8D is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.

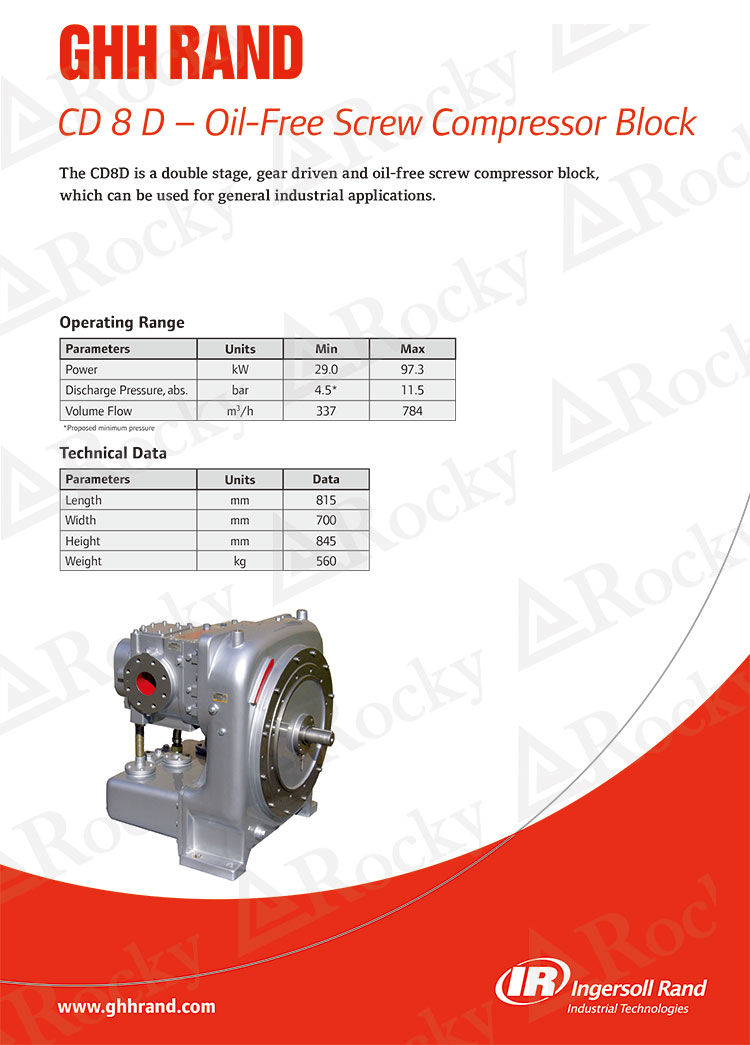

Technical Parameters
