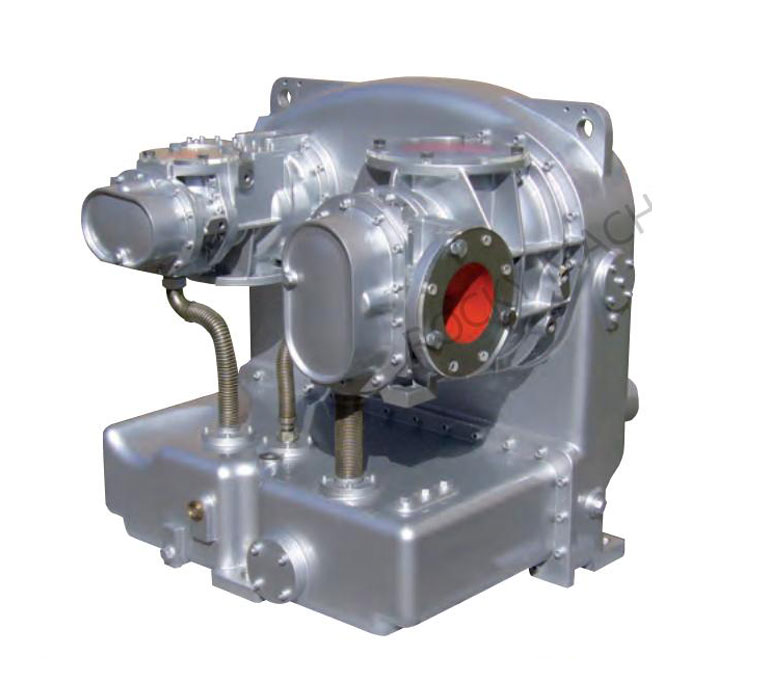

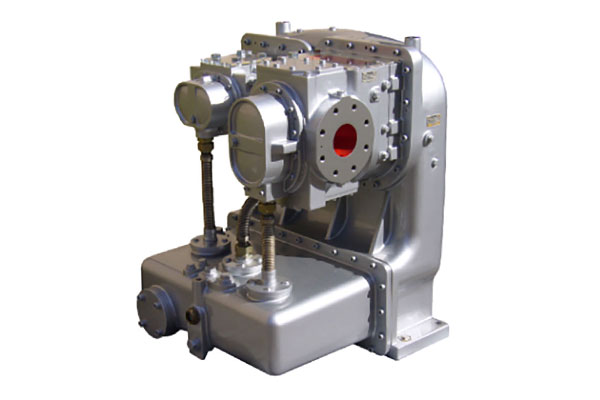

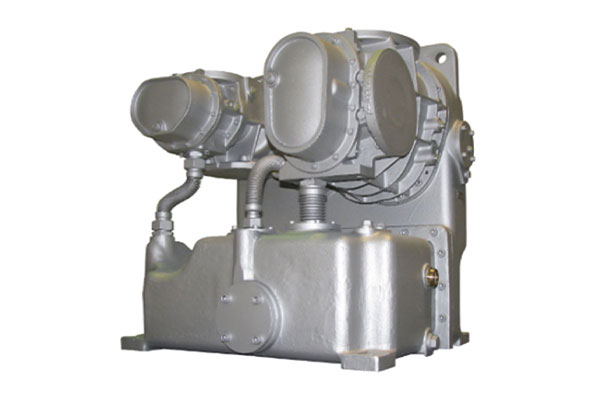

Ingersoll Rand Ghh CD26D Double Stage Air End for Oil Free Screw Compressor

The GHH-RAND CD26D is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.

  • Working Pressure:4.5~11.5[ bar ]65~167[ psig ]
  • Free Air Delivery:818.9~1765[ cfm ]23.2~50.3[ m3/min ]
  • Working Power:105.6~364.8[ kw ]140.8~486[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

The GHH-RAND CD26D is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.


Technical Parameters

  ModelPower
(KW)		Volume
flow(m3/h)		 Pressure
(bar)		Dimension (mm)  Weight                        (kg)
CD14D58.5~227751~18054.5~11.5760*730*770530
CD14D1 58.3~221.4750~17904.5~11.5760*730*770530
CD8D29~97.3337~7844.5~11.5815*700*845560
CD26D105.6~364.81395~30204.5~11.51030*1066*10351220
CD26S45.8~2311400~29852~4.6967*787*865630
CD42S68.4~3622209~48002~4.61117*932*9761100
CD42D161.4~571.72190~48384.5~11.51158*1132*10981760
