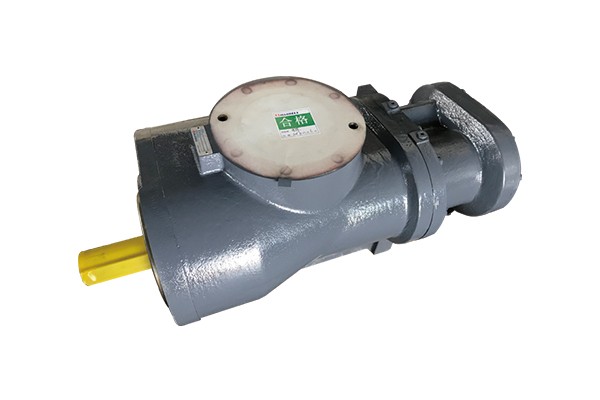

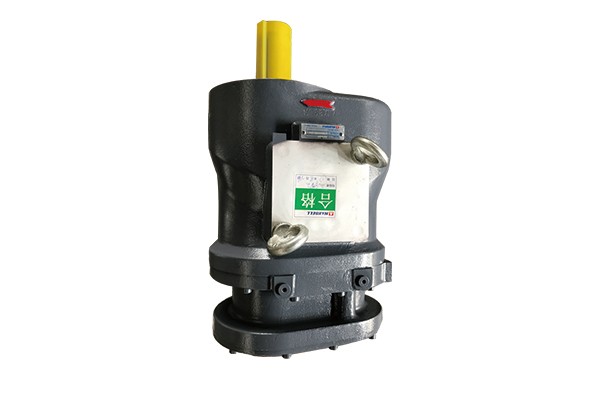

90kW Screw Compressor Hanbell Air End AA-1030R Screw Compressor Head

Application pressure range: 6.0~10.0 bar.g Four bearing design, simple structure and beautified appearance, black spray paint and no front cover design Economical machine head, lower application press

  • Working Pressure:6~10[ bar ]87~145[ psig ]
  • Free Air Delivery:554[ cfm ]15.7[ m3/min ]
  • Working Power:90[ kw ]125[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Hanbell air end AA series


●  Durable and Reliable

8~12 bearings, with anti-reverse rotation design and larger axial load, suitable for high application pressure; high structural strength and reliability of castings.

●  High Stability

Optimized exhaust port flow channel and strengthened casting wall thickness.

●  Reduced Noise and Vibration

Optimized exhaust port flow channel and strengthened casting wall thickness.

Technical Parameters

ModelPower (kW)Rotating speed (rpm)Air Delivery (m3/min)Shaft power (kW)Specific power (kW/m3/min)S.F.Dimension(mm)Weight(kg)
AA-077(Belt)7.5342017.37.40.97320*179*15043
AA-077 (Belt)1152001.5117.21320*179*15043
AA-130(Belt)153420214.67.20.97445*210*17050
AA-2101529502.919.46.71.05410*261*20770
AA-2402229503.522.76.41.03512*261*20773
AA-4203729506.238.26.11.03689*357*280155
AA-480R4529507.147.56.71.05476*373*299160
AA-600R5529509.157.66.31.05674*353*299180
AA-780R75295011.973.36.10.98746*434*350305
AA-1030R90295015.7104.56.61.08717*402*350275
AA-1200R110295019.4115.55.91.05863*575*412300
AA-1320132295021.4139.56.51.06863*610*442490
AA-1560160295023.9151.66.30.95928*630*453558
AA-1900R185295029.8186.66.21.01870*677*485680
