HANBELL Air End AB-130 Air Pump Screw Compressor Head

Special for 50Hz direct driven type High Efficiency: The male rotor has 5 teeth, the femalerotor has 6. This tooth combination can improve energyefficiency, and decrease excessive fluid backflow, due

Working Pressure:6~10[ bar ]87~145[ psig ]
Free Air Delivery:70.6[ cfm ]2[ m³/min ]
Working Power:15[ kw ]20[ hp ]

PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

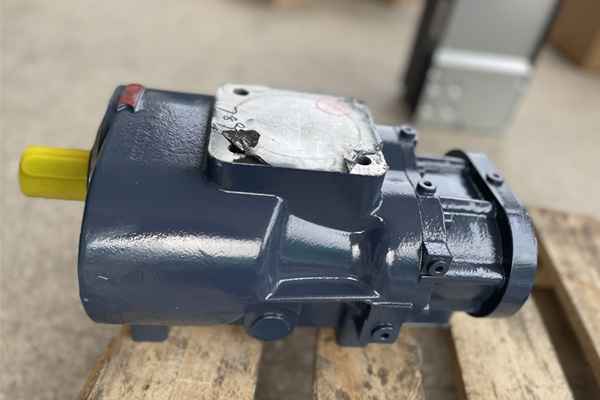

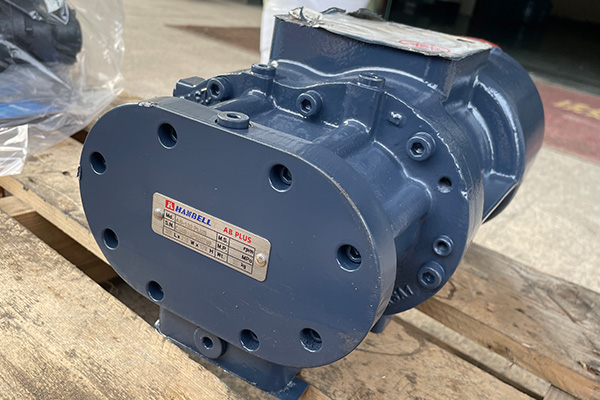

HANBELL Air End AB-130 Air Pump Screw Compressor Head

Product Details

Hanbell air end AB series

Special for 50Hz direct driven type

High Efficiency:

The male rotor has 5 teeth, the femalerotor has 6. This tooth combination can improve energyefficiency, and decrease excessive fluid backflow, due tothe similar circumference speed ratio of the two rotors.

Tightness:

When the internal leakage losses frombackflow of the compressed air through the gap betweenthe rotors and the housing is kept as low as possible.

Low vibration, long service life:

We use high-preci-sion-manufactures rotors, which guarantee HB Airend longbearing service life and low vibrations.

Technical Parameters

Model	Power (kW)	Rotating speed (rpm)	Air Delivery (m3/min)	Shaft power (kW)	Specific power (kW/m'/min)	S.F.	Dimension(mm)	Weigt (kg)
AB-077 (Belt)	7.5	3420	1	7.3	7.4	0.97	262180150	25
AB-077 (Belt)	11	5200	1.5	11	7.2	1	262180150	25
AB-130 (Belt)	15	3420	2	14.6	7.2	0.97	397210170	40
AB-210	18.5	2950	2.9	19.4	6.7	1.05	445250200	62
AB-240	22	2950	3.5	22.7	6.4	1.03	445261207	64
AB-350RS	30	2950	4.7	33.1	7.1	1.1	500350300	118
AB-420	37	2950	6.2	38.2	6.1	1.03	480350280	109
AB-480R	45	2950	7.1	47.5	6.7	1.05	550370299	145
AB-600R	55	2950	9.1	57.6	6.3	1.05	630350300	155
AB-780R	75	2950	11.9	73.3	6.1	0.98	650380350	195
AB-1030R	90	2950	14.8	95	6.4	1.08	772402350	260
AB-1200R	110	2950	19.4	115.5	5.9	1.05	810575412	378
AB-1320	132	2950	21.4	139.5	6.5	1.06	863610442	490
AB-1450R	132	2950	21.8	135.8	6.2	1.03	630485409	220
AB-1560	160	2950	23.9	151.6	6.3	0.95	900630452	550
AB-1560R	160	2950	24	151.6	6.3	0.95	900630452	550
