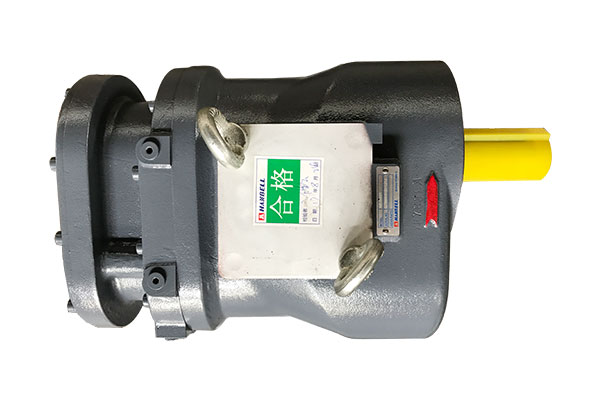

55kW 75hp Screw Compressor Head Hanbell Air End AB-600R

Special for 50Hz direct driven type High Efficiency: The male rotor has 5 teeth, the femalerotor has 6. This tooth combination can improve energyefficiency, and decrease excessive fluid backflow, due

  • Working Pressure:8~10[ bar ]87~145[ psig ]
  • Free Air Delivery:321[ cfm ]9.1[ m3/min ]
  • Working Power:55[ kw ]75[ hp ]

Product Details

Hanbell air end AB series


Special for 50Hz direct driven type


High Efficiency:

The male rotor has 5 teeth, the femalerotor has 6. This tooth combination can improve energyefficiency, and decrease excessive fluid backflow, due tothe similar circumference speed ratio of the two rotors.

Tightness:

When the internal leakage losses frombackflow of the compressed air through the gap betweenthe rotors and the housing is kept as low as possible.

Low vibration, long service life:

We use high-preci-sion-manufactures rotors, which guarantee HB Airend longbearing service life and low vibrations.


Technical Parameters

Model

Power

(kW)

Rotating

speed

(rpm)

Air Delivery (m3/min)

Shaft

power

(kW)

Specific power (kW/m'/min)S.F.Dimension(mm)

Weight(kg)

AB-077 (Belt)7.5342017.37.40.97262*180*15025
AB-077 (Belt)1152001.5117.21262*180*15025
AB-130 (Belt)153420214.67.20.97397*210*17040
AB-21018.529502.919.46.71.05445*250*20062
AB-2402229503.522.76.41.03445*261*20764
AB-350RS3029504.733.17.11.1500*350*300118
AB-4203729506.238.26.11.03480*350*280109
AB-480R4529507.147.56.71.05550*370*299145
AB-600R5529509.157.66.31.05630*350*300155
AB-780R75295011.973.36.10.98650*380*350195
AB-1030R90295014.8956.41.08772*402*350260
AB-1200R110295019.4115.55.91.05810*575*412378
AB-1320132295021.4139.56.51.06863*610*442490
AB-1450R132295021.8135.86.21.03630*485*409220
AB-1560160295023.9151.66.30.95900*630*452550
AB-1560R160295024151.66.30.95900*630*452550
