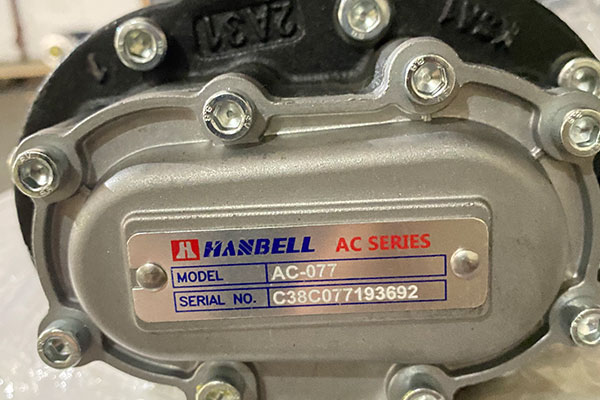

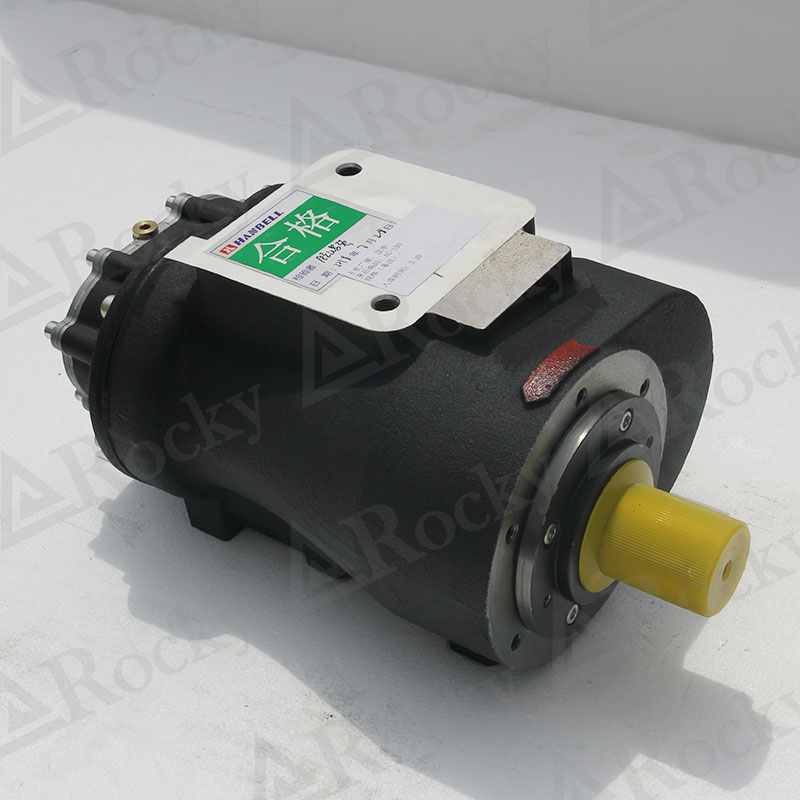

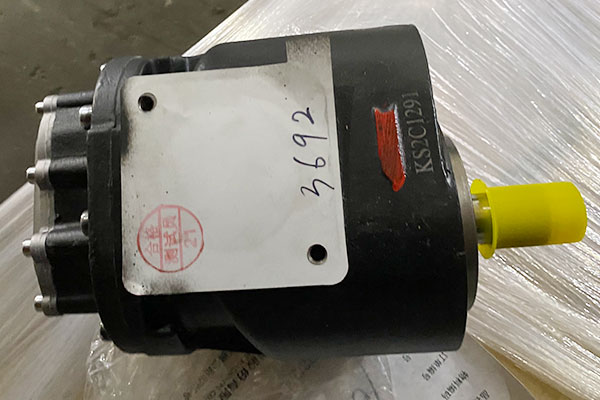

7.5kw 10HP Screw Compressor Head Hanbell Screw Air End AC-077

Product Features ● Optimized Structure Four-bearing design, ensuring simple and compact, effectively saving air unit package space and overall cost. ● Semi-Automatic Assembly Advanced semi-automat

  • Working Pressure:6~10[ bar ]87~145[ psig ]
  • Free Air Delivery:35.3[ cfm ]1.03[ m3/min ]
  • Working Power:7.5[ kw ]10[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Product Features


●  Optimized Structure

Four-bearing design, ensuring simple and compact, effectively saving air unit package space and overall cost.

●  Semi-Automatic Assembly

Advanced semi-automatic assembly line precisely controls the tolerance range of each component and assembly to ensure    operating stability.

●  Large Market Share

Cost-effective product line with large market share.


Technical Parameters

ModelPower (kW)Rotating speed (rpm)Air Delivety (m3/min)Shaft power (kW)Specific power (kW/m3/min)Connection methodDimension(mm)

Weight(kg)

AC-0777.536001.037.37.09Belt/PM282*178*14018
AC-0771152001.59116.92Belt/PM282*178*14018
AC-1301130001.9212.76.61Belt/PM380*200*17050
AC-1301536002.3415.66.67Belt/PM380*200*17050
AC-2402230003.59236.41Direct Driven405*260*20755
AC-420S3030004.5316.89Direct Driven453*353*280100
AC-4203730006.2838.96.19Direct Driven453*353*280100
AC-480R4530007.3845.76.19Direct Driven550*370*300145
AC-600R5530009.2557.66.23Direct Driven630*350*300155
AC-780R75300012.674.75.93Direct Driven650*380*350195
AC-1030R90300015.296633Direct Driven772*402*350260
AC-1200R110300019.541196.09Direct Driven810*575*412378
AC-1320132300021.83142.46.52Direct Driven863*610*442490
AC-1450R132300021.76135.76.24Direct Driven500*485*409220
