Small Screw Compressor Head Baosi Air End Ynt46A

1. All series of rotors are processed using KAPP grinders imported from Germany, with high precision and efficiency. 2. It can be driven by belt or directly connected, making the application flexible

  • Working Pressure:8~10[ bar ]87~145[ psig ]
  • Free Air Delivery:16.3~413[ cfm ]0.46~11.7[ m3/min ]
  • Working Power:5.5[ kw ]7.5[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

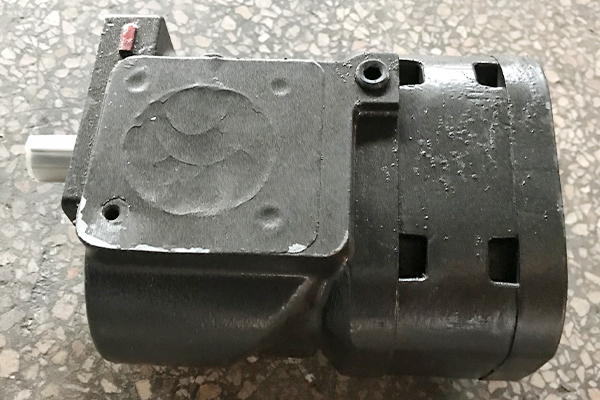

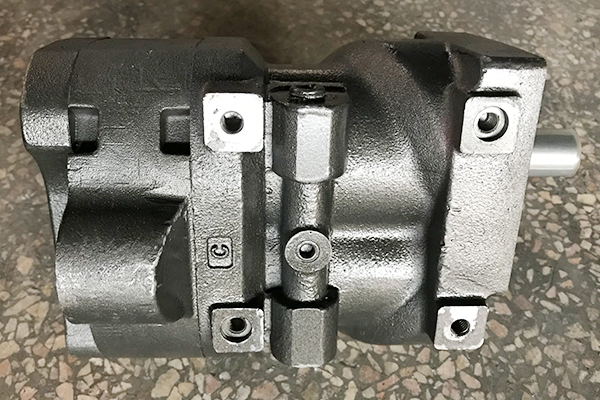

Small Screw Compressor Head Screw Air Baosi Air End YNT46A


Product feature
1. All series of rotors are processed using KAPP grinders imported from Germany, with high precision and efficiency.
2. It can be driven by belt or directly connected, making the application flexible and convenient.
3. The optimized design of the host structure makes the overall structure more compact and beautiful.

Airend model No.: YNT46A

For screw air compressor: 5.5kw/7.5hp
Discharge pressure: 8bar-10bar
for screw air compressor assembling/ repair / maintenance

Technical Parameters

ModelPower(kW)Connection methodDimension(mm)Weight(kg)
YNT55A7.5KWdirect drive288*170*13725
YNT60A7.5KWdirect drive300*200*16525
YNT70A11KWdirect drive348*209*17030
YNT70B15KWdirect drive398*220*17535
YNT80A18.5KWdirect drive414*237*208
YNE117RA22KWdirect drive398*260*21051
YNE133RA30KWdirect drive473*302*24281
YNE143RA37KWdirect drive435*332*255100
YNE143RB45KWdirect drive517*332*255110
YNE163RA55KWdirect drive572*370*285140
YNE163RA55KWdirect drive572*370*285140
YNE178RA75KWdirect drive587*404*322175
YNE178RB90KWdirect drive667*404*322195
YNE204RA110KWdirect drive398*203*340255
YNE204RB132KWdirect drive398*203*340280
