132kW Screw Air End Screw Rotor Element Baosi YNE204RB Airend

1. Level 4 motor is directly connected, suitable for diesel engine drive: speed 1480~2200r/min; 2. Energy saving: optimized exhaust port design, suitable for 2~5 kg low pressure; reasonable linear spe

  • Working Pressure:8~10[ bar ]87~145[ psig ]
  • Free Air Delivery:371~914[ cfm ]10.52~25.9[ m3/min ]
  • Working Power:132[ kw ]176[ hp ]

Product Details

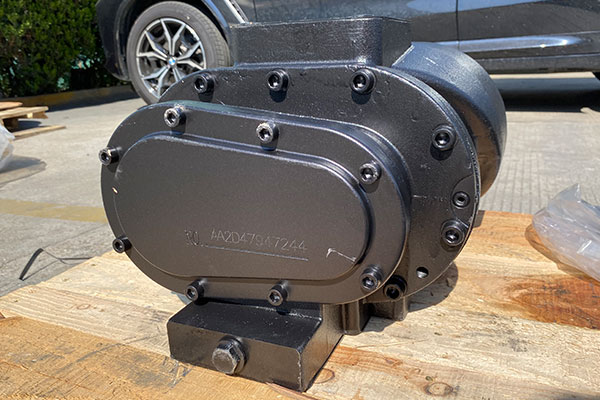

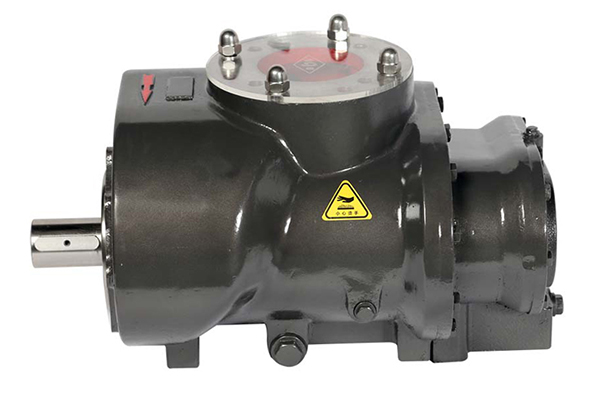

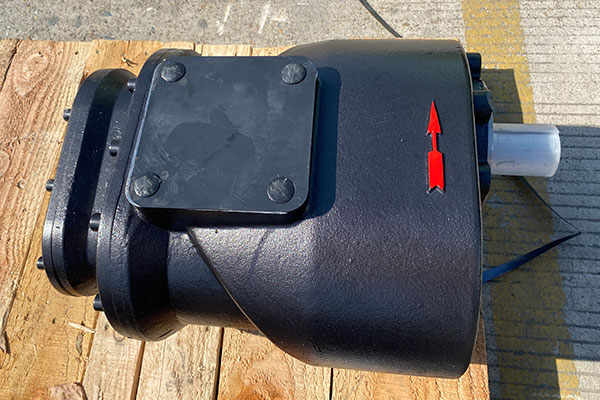

Screw Air End Screw Rotor Element Baosi YNE204RB Airend

Product feature
1. Level 4 motor is directly connected, suitable for diesel engine drive: speed 1480~2200r/min;
2. Energy saving: optimized exhaust port design, suitable for 2~5 kg low pressure; reasonable linear speed design to improve overall performance;
3. Reliable: The rotor is processed by German KAPP grinding machine, with reliable accuracy;
4. Low noise: large rotor, low speed, stable operation, low vibration and low noise.


Airend model No.: YNE204RB
For screw air compressor: 132kw/180hp
Discharge pressure: 8bar-10bar
for screw air compressor assembling/ repair / maintenance


Technical Parameters

ModelPower(kW)Connection methodDimension(mm)Weight(kg)
YNT55A7.5KWdirect drive288*170*13725
YNT60A7.5KWdirect drive300*200*16525
YNT70A11KWdirect drive348*209*17030
YNT70B15KWdirect drive398*220*17535
YNT80A18.5KWdirect drive414*237*20835
YNE117RA22KWdirect drive398*260*21051
YNE133RA30KWdirect drive473*302*24281
YNE143RA37KWdirect drive435*332*255100
YNE143RB45KWdirect drive517*332*255110
YNE163RA55KWdirect drive572*370*285140
YNE163RA55KWdirect drive572*370*285140
YNE178RA75KWdirect drive587*404*322175
YNE178RB90KWdirect drive667*404*322195
YNE204RA110KWdirect drive398*203*340255
YNE204RB132KWdirect drive398*203*340280
