Italian Original TMC Screw Air End SCA7LA

The TMC SCA7LA Screw Air End Compressor Head, With a range of 5.5~11KW, this air end is perfect for those who demand top-notch performance. Made with durable cast iron, it ensures long-lasting stabili

  • Working Pressure:3~15[ bar ]43.5~217.5[ psig ]
  • Free Air Delivery:441[ cfm ]12.5[ m3/min ]
  • Working Power:5.5~11[ kw ]7.5~15[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

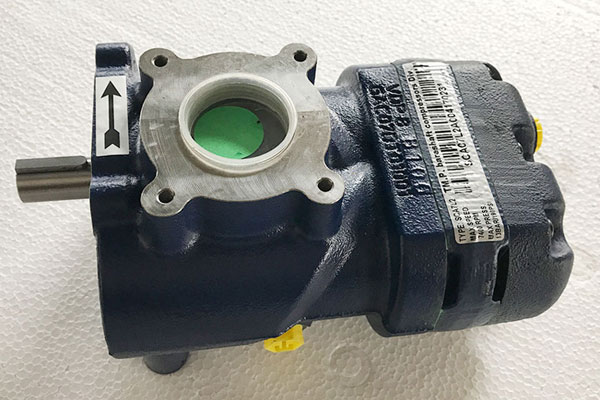

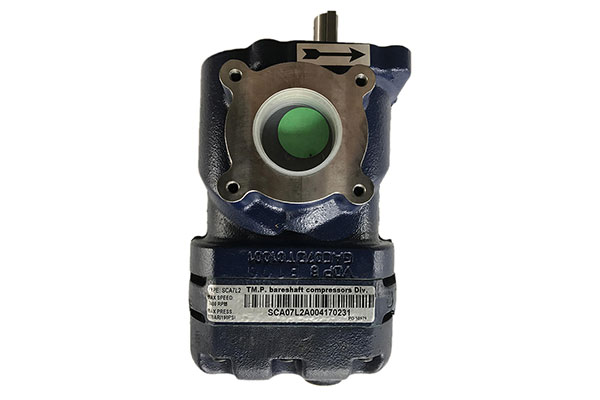

Italian Original TMC Screw Air End SCA7LA


The TMC SCA7LA Screw Air End Compressor Head, With a range of 5.5~11KW, this air end is perfect for those who demand top-notch performance. Made with durable cast iron, it ensures long-lasting stability and a consistent flow rate that will keep your compressor running smoothly.

Technical Parameters

ModelPower（kW）Pressure(bar)Diemension(mm)Weight(kg)
SCA7AL      5.5~113~13233*133.5*11510
SCA8DA5.5~113~15217*184.5*16418
SCA9DA7.5~153~15237*260*20740
SCA10DR  22~373~15228.5*260*20745
SCA13DR    37~453~15498*288*25574
SCA14DR    55~753~15503*312*280108
SCA14GR    75~903~15590*358*260140
SCA20DR    1103~15617*459*350263
SCA20GR   100~1323~15759*459*350320
SCA22DR    1323~15710*527*425393
