22~37kw Screw Air Compressor Head Italy Tmc Air End Sca10dr

Experience the reliability and longevity of the Original Italian Screw Air Compressor Head TMC Air End SCA10DR With a stable running performance and ample flow rate, this compressor head is built to l

  • Working Pressure:3~15[ bar ]43.5~217.5[ psig ]
  • Free Air Delivery:53[ cfm ]1.5[ m3/min ]
  • Working Power:22~37[ kw ]30~50[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

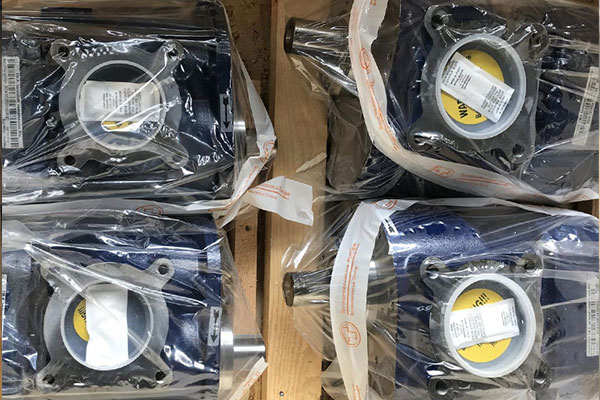

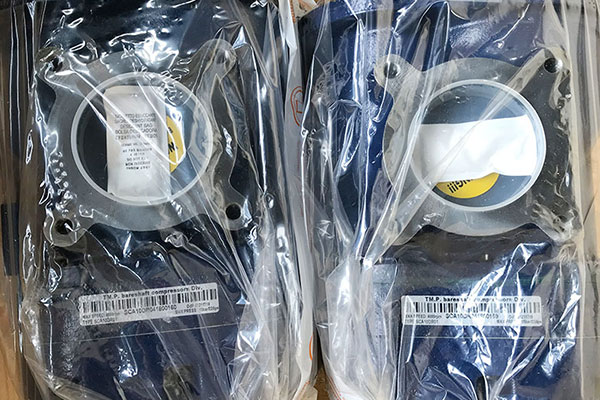

22~37kw Screw Air Compressor Head Italy Tmc Air End SCA10DR

Experience the reliability and longevity of the Original Italian Screw Air Compressor Head TMC Air End SCA10DR With a stable running performance and ample flow rate, this compressor head is built to last. Trust in the quality and durability of this Italian screw compressor part.

Technical Parameters

ModelPower（kW）Pressure(bar)Diemension(mm)Weight(kg)
SCA7AL      5.5~113~13233*133.5*11510
SCA8DA5.5~113~15217*184.5*16418
SCA9DA7.5~153~15237*260*20740
SCA10DR  22~373~15228.5*260*20745
SCA13DR    37~453~15498*288*25574
SCA14DR    55~753~15503*312*280108
SCA14GR    75~903~15590*358*260140
SCA20DR    1103~15617*459*350263
SCA20GR   100~1323~15759*459*350320
SCA22DR    1323~15710*527*425393
