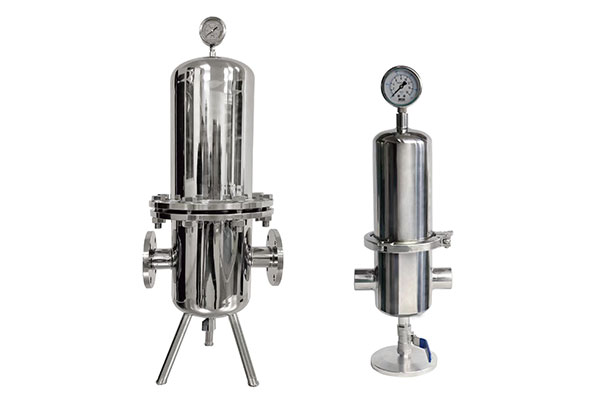

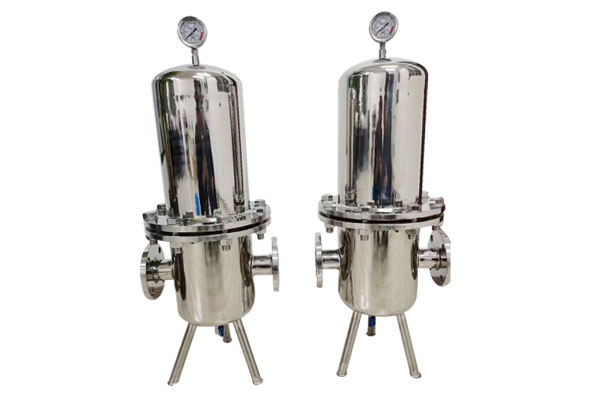

130~140nm3/Min Air Compressor Filter Compressed Air Dryer Line Filter F-700

The sterilizing filter mainly uses a microfiltration filter element with a large specific surface area and a filtration precision of 0.22um or above. It is mainly used to prevent impurities and harmfu

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:4589~4942[ cfm ]130~140[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

130~140nm3/Min Air Compressor Filter Compressed Air Dryer Line Filter F-700


Product features
1. The sterilizing filter generally adopts a cross-hanging type with horizontal entry and exit. Multi-core filters can be designed as floor-standing.
2. In some use cases, it is divided into two types: pre-filter and fine filter according to actual needs.
3. Air flow direction: from outside to inside through the filter element.
4. Sterilize regularly, 1-2 times a week or monthly according to actual usage, 30 minutes each time, using clean saturated steam with 1U filtration accuracy. When the steam temperature is <0.3MPO, the valve opens and closes slowly.

Technical Parameters

Filter modelFlow (m3/min)Filter elementNumber of filter elementsImport and exportBarrel diameter
F-0101-25inch11 inch inner wire + quick opening102
F-0504-610 inch11 inch inner wire + quick opening102
F-0707-1020 inch11.5 inch inner wire + quick opening102
F-10015-2020 inch2DN50 flange180
F-20030-3520 inch3DN65 flange219
F-30040-5520 inch5DN80 flange255
F-40060-7520 inch7DN80 flange255
F-50080-10020 inch9DN100 flange325
F-600110-12020 inch11DN125 flange377
F-700130-14020 inch13DN125 flange377
F-800150-16020 inch15DN150 flange426
