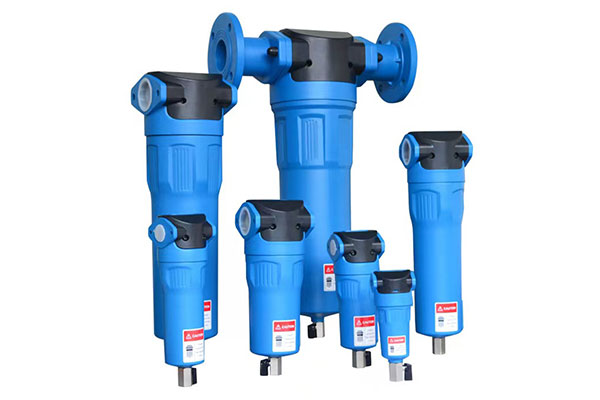

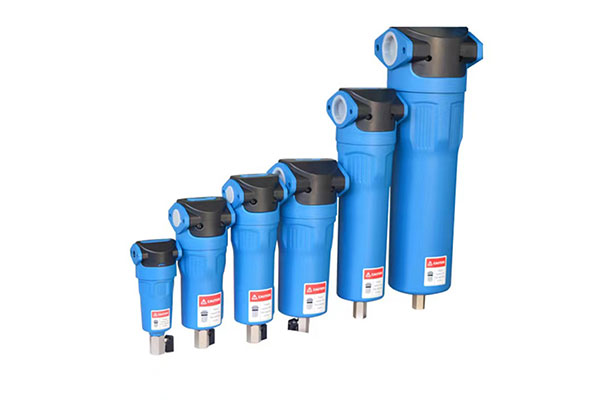

20n3/min Precision Filter Compressed Air Aluminum Alloy Filter RJ-200*

RJ series ultra-clean precision filters provide users with high-quality compressed air filtration.

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:706[ cfm ]20[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

铝合金过滤器 (15).jpg

Product Features

1. High-efficiency filtration: It can efficiently remove tiny particles in the air or liquid, with a filtration efficiency of more than 99% and a filtration accuracy of 0.01μm.

2. Strong corrosion resistance: The aluminum alloy material has good corrosion resistance and is suitable for use in a variety of chemical environments.

3. Large flow rate: The design is reasonable and the flow path is expanded to reduce pressure drop and ensure high flow rate.

4. Easy operation: The structure is compact, the installation and maintenance are simple, and the filter element is easy to clean and replace.

5. Long service life: It has strong durability, the shell is made of high-quality aluminum alloy, and the inside and outside are sprayed with epoxy resin powder to improve durability and corrosion resistance.

6. No fiber shedding: No fiber shedding will occur during the filtration process to ensure the purity of the filter medium.

Technical Parameters

Filter modelFlow m3/minInterface CModel of filter
element
RJ-010*1.2 1/2"or 3/4" or1"FJ-010*
RJ-020*2.3 1/2"or 3/4" or1"FJ-020*
RJ-030*3.5 1" or 1-1/2"FJ-030*
RJ-050*5.7 1-1/2"FJ-050*
RJ-070*7.8 1-1/2"FJ-070*
RJ-110*11.6 2"FJ-110*
RJ-150*15.5 2"FJ-150*
RJX-200*20 2-1/2"FJX-200*
RJX-250*25 2-1/2"FJX-250*
RJX-300*30.8 3"FJX-300*
RJX-400*40.5 4"FJX-400*
FRJX-200*20 DN65FJX-200*
FRJX-250*25 DN65FJX-250*
FRJX-300*30.8 DN80FJX-300*
FRJX-400*40.5 DN100FJX-400*

1. *Representative level: C/T/A/X/H/F/FF

2.   Corresponding accuracy:

Level C : 3 microns, oil content: 3 ppm

Level T : 1 micron, oil content: 1 ppm

Level A : 0.01 micron, oil content: 0.01 ppm

Level X : 0.01 micron, oil content: 0.003 ppm

Level H  (activated carbon) : 0.01 micron,oil content: 0.001ppm

Level F high efficiency dust removal:  0.1 micron

Level FF super efficient dust removal:  0.01 micron
