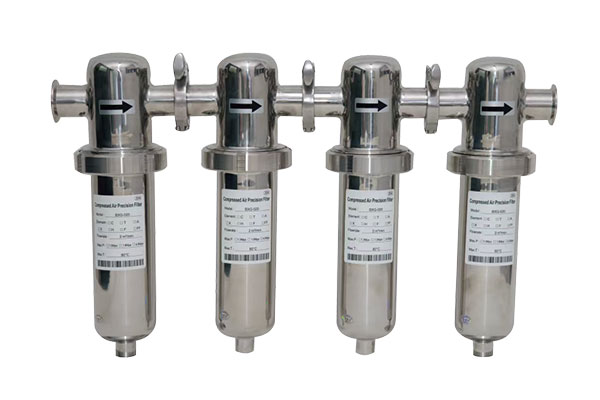

2m3/min Filter Stainless Steel Precision Filter Bxg-020*

The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are m

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:70.6[ cfm ]2[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]

Product Details



Product Features

1. High-efficiency filtration: high filtration accuracy, usually up to 0.01μm, can effectively filter out microorganisms such as bacteria, viruses and bacteriophages.

2. High temperature resistance: can withstand high-temperature steam of 200℃, suitable for repeated disinfection, and will not reduce filtration efficiency.

3. Easy to clean and regenerate: through the backwashing function, impurities on the surface of the filter element can be removed, the filtration capacity can be restored, and the service life can be extended.

4. High strength and durability: made of 304 or 316L stainless steel, it has high mechanical strength, can withstand high pressure and high temperature working environment, and is not easy to deform and damage.

5. Wide applicability: suitable for food, beverage, medicine, electronics and other industries, meeting the filtration needs of different fields.

6. Reasonable structural design: the inner and outer surfaces are polished, there is no sanitary dead corner, and it meets GMP standards.

Technical Parameters

Filter Model

Capacity

(m3/min)

Number of

filter

elements

Filter element model

Import and Export

(Threaded Flange)

HBarrel diameter
BXG-010*11E-161"36415076
BXG-020*21E-201"36416076
BXG-030*31E-241.5"40216089
BXG-050*51E-281.5"57221089
BXG-070*71E-321.5"57226089
BXG-110*11 1E-362"710340102
BXG-140*151E-40DN65710380133
BXG-180*201E-44DN801000380133
BXG-220*251K430DN80950380159
BXG-350*401K620DN10011501150159
