Screw Compressor Line Filter Bxg-350* Stainless Steel Precision Filter

The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are m

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:1412[ cfm ]40[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

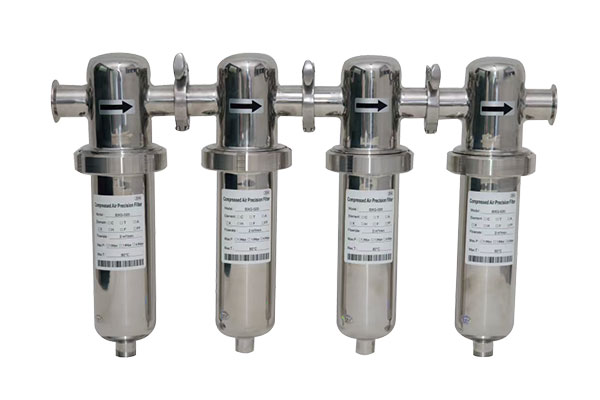

Screw Compressor Line Filter Bxg-350* Stainless Steel Precision Filter


The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are mirror polished, with anti-corrosion and low resistance; it is widely used for filtering and sterilizing various industrial gases, such as semiconductor, metallurgy, medical, pharmaceutical and food chemical industries.

Technical Parameters

Filter Model

Capacity

(m3/min)

Number

of

filter

elements

Filter

element

model

Import and Export

(Threaded Flange)

HA Barrel diameter
BXG-010*11E-161"36415076
BXG-020*21E-201"36416076
BXG-030*31E-241.5"40216089
BXG-050*51E-281.5"57221089
BXG-070*71E-321.5"57226089
BXG-110*11 1E-362"710340102
BXG-140*151E-40DN65710380133
BXG-180*201E-44DN801000380133
BXG-220*251K430DN80950380159
BXG-350*401K620DN10011501150159
