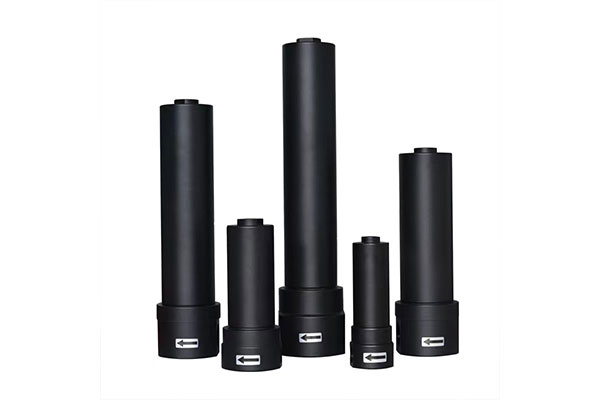

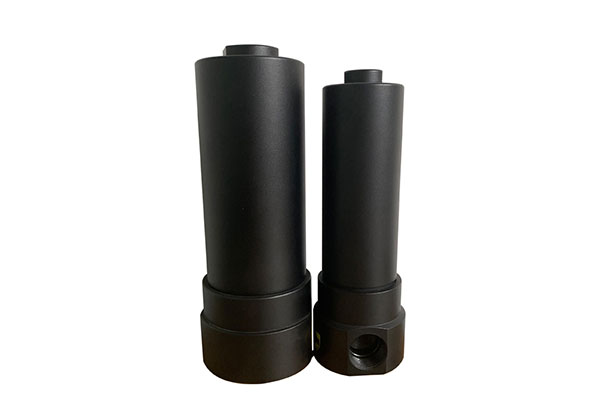

High Pressure Precision Filter Compressed CNH-100* Industrial Air Filter

The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are m

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:388.3[ cfm ]11[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

High Pressure Precision Filter Compressed CNH-100* Industrial Air Filter


The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are mirror polished, with anti-corrosion and low resistance; it is widely used for filtering and sterilizing various industrial gases, such as semiconductor, metallurgy, medical, pharmaceutical and food chemical industries.

Technical Parameters

Assembly modelflow(m³/min)Connection sizeFilter model
CNH-010*1 1 InchE*-16+
CNH-020*2 1 InchE*-20+
CNH-030*3 1 InchE*-24+
CNH-050*5 1.5 InchE*-28+
CNH-070*7 1.5 InchE*-32+
CNH-100*11 1.5 InchE*-36+
CNH-100*11 2 InchE*-36+
* Representative level:
C/T/A/X/H,corresponding accuracy:initial effect 3μm/medium effect 1μm/high efficiency 0.01μm/ultra-high efficiency 0.001μm/activated carbon.
