Air Compressor Filter Oil Gas Water Separator QS10

An air-water separator installed in front of the compressed air fliter and drying equipment can remove 99% of the liquid water, making downstream purification equipment more efficient. The unique two-

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:564.8~1059[ cfm ]16~30[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2023 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

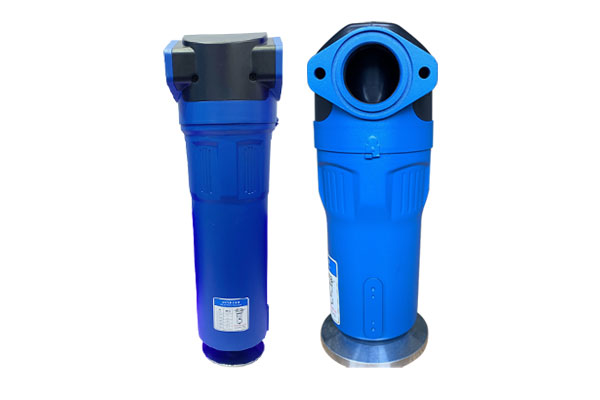

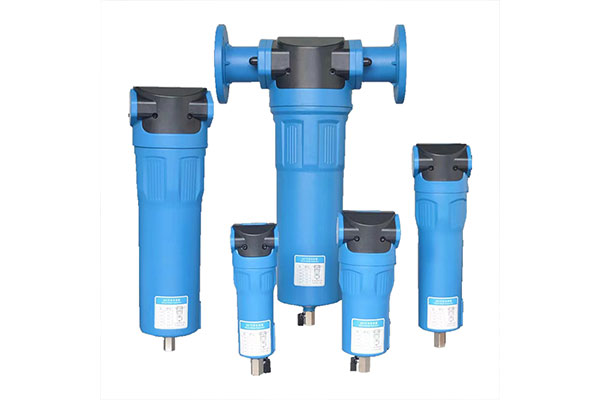

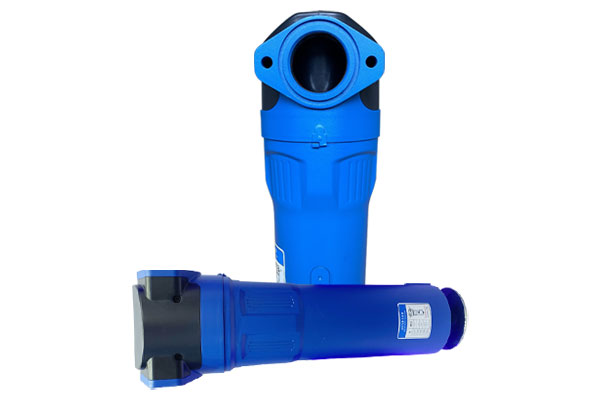

Air Compressor Filter Oil Gas Water Separator QS10


An air-water separator installed in front of the compressed air fliter and drying equipment can remove 99% of the liquid water, making downstream purification equipment more efficient. The unique two-stage cyclone separation design of Rocky air-water separator makes it more effective than the traditional air-water separator. The optional installation position of the air-water separator is in the air compressor, in front of the rear cooler, and behind the gas storage tank.

Technical Parameters


ModelFlow m³/MConnection sizeHdiameterWAB
QS010.6-2  3/4"  23588953251
QS023.0-5.0 1"27688953251
QS036.0-8.01-1/2"3021101233865
QS059.0-15.01-1/2"4201101233865
QS1016.0-30.02"5451561704682
