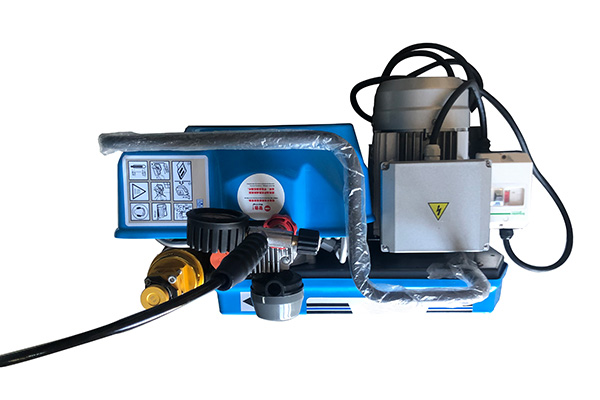

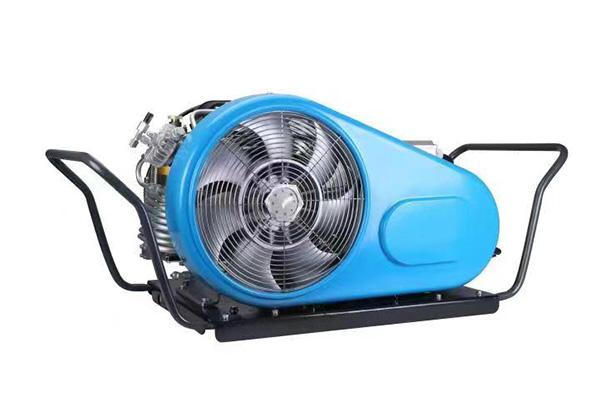

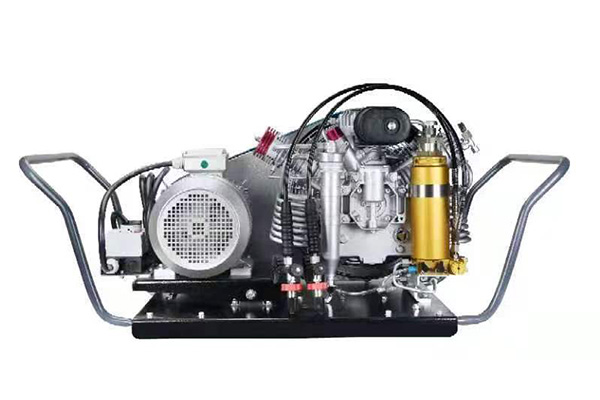

High Pressure Breathing Air Compressor GDR-200E 200L/min Scuba Diving Air Compressor

High-pressure breathing air compressors are widely used in firefighting,marine and diving breathing fields, and are specially used to fill breathing cylinders. Dual pressure configuration, quick bott

  • Working Pressure:225~350[ bar ]3263~5075[ psig ]
  • Free Air Delivery:7.06[ cfm ]0.2[ m3/min ]
  • Working Power:4.2[ kw ]5.5[ hp ]

Product Details

Product features

High-pressure breathing air compressors are widely used in firefighting,marine and diving breathing fields,  and are specially used to fill breathing cylinders. Dual pressure configuration, quick bottle filling, provide safe  and pure breathing air source, in line with European standard EN12021. With compact structure, easy to move,  safe and efficient, it is a reliable high-pressure breathing air filling device.


Application industry

High pressure breathing air filling compressors are widely used in scuba diving,  firefighting, marine, paintball, aerospace, aquaculture, golf course and other  fields.

Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
Vola(V/HZ/PH)Speed
(Rpm)
Compression
stage
Oil amount
(L)
Operating
Temp (°C)
Dimension
L*W*H(mm)
Weight
(Kg)
GDR-100E100/3.5225/3503220-230V 50/60HZ 1PH230030.36   5~ +45770*380*42045
GDR-100P100/3.5225/3505.5Honda Gasoline Engine230030.36   5~ +45770*420*42044
GDR-150E150/5.2225/3504220-230V 50/60HZ 1PH245030.36   5~ +45660*400*42052
GDR-150P150/5.2225/3506.5Honda Gasoline Engine245030.36   5~ +45790*420*42047
