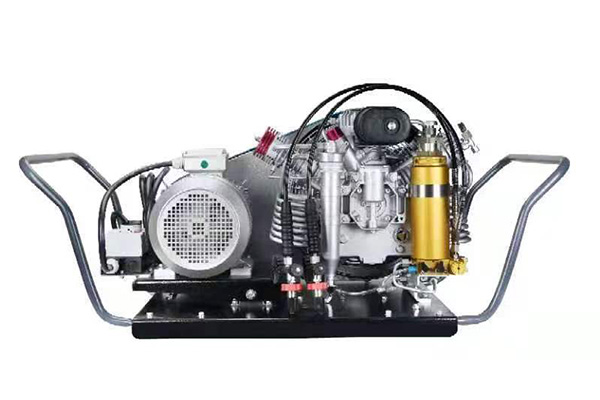

265L/Min 300 Bar 4500psi High Pressure Diving Scuba Air Compressor GDR-265E

High-pressure breathing air compressors are widely used in firefighting,marine and diving breathing fields, and are specially used to fill breathing cylinders. Dual pressure configuration, quick bott

  • Working Pressure:225~350[ bar ]3262.5~5075[ psig ]
  • Free Air Delivery:9.35[ cfm ]0.265[ m3/min ]
  • Working Power:7.5[ kw ]10[ hp ]

Product Details

Product feature

High-pressure breathing air compressors are widely used in firefighting,marine and diving breathing fields,  and are specially used to fill breathing cylinders. Dual pressure configuration, quick bottle filling, provide safe  and pure breathing air source, in line with European standard EN12021. With compact structure, easy to move,  safe and efficient, it is a reliable high-pressure breathing air filling device.


Application industry

High pressure breathing air filling compressors are widely used in scuba diving,  firefighting, marine, paintball, aerospace, aquaculture, golf course and other  fields.

Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
(V/HZ/PH)Speed
Rpm
Compression
stage
Oil amount
(L)
Operating
Temp (°C)
Dimension
L*W*H(mm)
Weight
(Kg)
GDR-200E200/7225/3505.5220-440V 50/60HZ 3PH125032.85~ +451160*590*570116
GDR-200P200/7225/3508Honda Gasoline Engine125032.85~ +451180*590*570109
GDR-265E265/9225/35010220-440V 50/60HZ 3PH145032.85~ +451160*590*570124
GDR-265P265/9225/35012Honda Gasoline Engine145032.85~ +451180*590*570115
GDR-320E320/11225/35010220-440V 50/60HZ 3PH195042.85~ +451300*640*740138
GDR-320P320/11225/35013Honda Gasoline Engine195042.85~ +451300*640*850154
GDR-400E400/14225/35010220-440V 50/60HZ 3PH285042.85~ +451450*640*740160
GDR-400P400/14225/35013Honda Gasoline Engine285042.85~ +451450*640*850178
