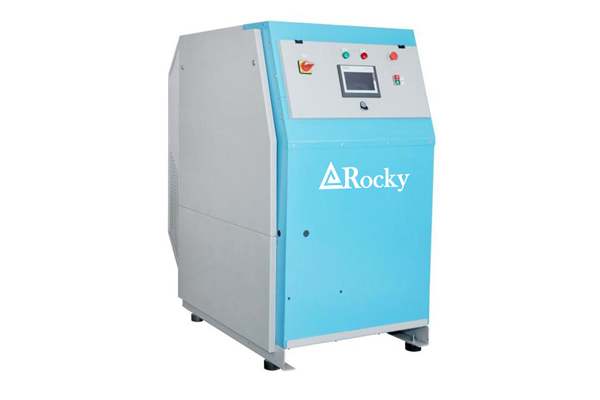

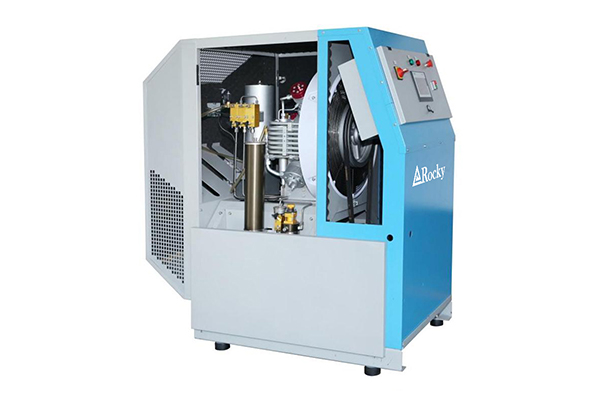

20 hp High Pressure breathing air compressor GDR-680E

High-pressure breathing air compressors are widely used in firefighting,marine and diving breathing fields, and are specially used to fill breathing cylinders. Dual pressure configuration, quick bott

  • Working Pressure:225~350[ bar ]3262.5~5075[ psig ]
  • Free Air Delivery:24[ cfm ]0.68[ m3/min ]
  • Working Power:15.4[ kw ]20[ hp ]

Product Details

Product feature

Designed for the needs of high-intensity continuous operation in professional applications. It can realize fast bottle  filling on site in fire and toxic environment. Fully automatic PLC control system, automatic sewage design. Durable  and easy to move, it provides safe and reliable pure breathing air or compressed air for all field.


Application industry

High pressure breathing air filling compressors are widely used in scuba diving,  firefighting, marine, paintball, aerospace, aquaculture, golf course and other  fields.

Technical Parameters

ModelFlow
(L/min/cfm)
Pressure
(Bar)
Power
(Hp)
(V/HZ/PH)Speed
Rpm
Compression
stage
Oil amount
(L)
Operating
Temp (°C)
Dimension
L*W*H(mm)
Weight
(Kg)
GDR-500E500/18225/35015220-440V 50/60HZ 3PH1200455~ +451500*860*1550380
GDR-680E680/18225/35020220-440V 50/60HZ 3PH1400455~ +451500*860*1550410
GDR-750E750/25225/33020220-440V 50/60HZ 3PH1600455~ +451500*860*1550420
