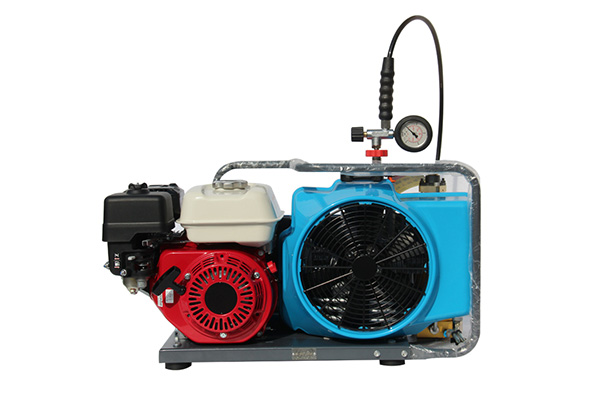

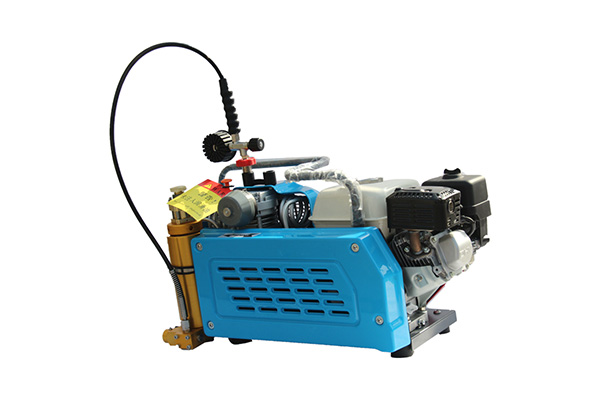

High Pressure Scuba Diving Gas Air Compressor GDR-150P

The most compact model, robust and flexible, ideal for sports diving, marine, respirator, paintball and sport shooting.

  • Working Pressure:225~350[ bar ]3262.5~5075[ psig ]
  • Free Air Delivery:5.3[ cfm ]0.15[ m3/min ]
  • Working Power:5[ kw ]6.5[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Product feature

The most compact model, robust and flexible, ideal for sports diving, marine, respirator, paintball and sport shooting.


Application industry

High pressure breathing air filling compressors are widely used in scuba diving,  firefighting, marine, paintball, aerospace, aquaculture, golf course and other  fields.

Technical Parameters

ModelFlow
(L/min/cfm)		Pressure
(Bar)		Power
(Hp)		(V/HZ/PH)Speed
（Rpm）		Compression
stage		Oil amount
(L)		Operating
Temp (°C)		Dimension
L*W*H(mm)		Weight
(Kg)
GDR-100E100/3.5225/3503220-230V 50/60HZ 1PH230030.36   5~ +45770*380*42045
GDR-100P100/3.5225/3505.5Honda Gasoline Engine230030.36   5~ +45770*420*42044
GDR-150E150/5.2225/3504220-230V 50/60HZ 1PH245030.36   5~ +45660*400*42052
GDR-150P150/5.2225/3506.5Honda Gasoline Engine245030.36   5~ +45790*420*42047
