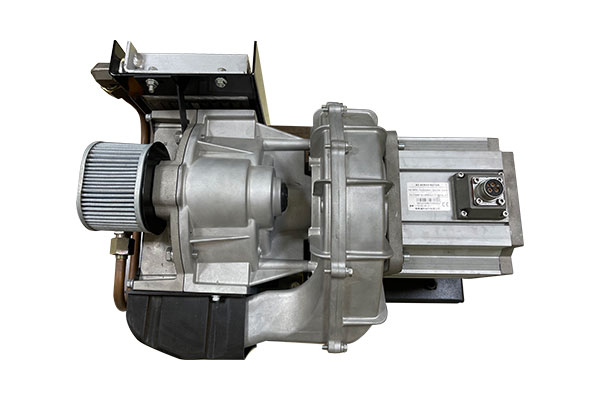

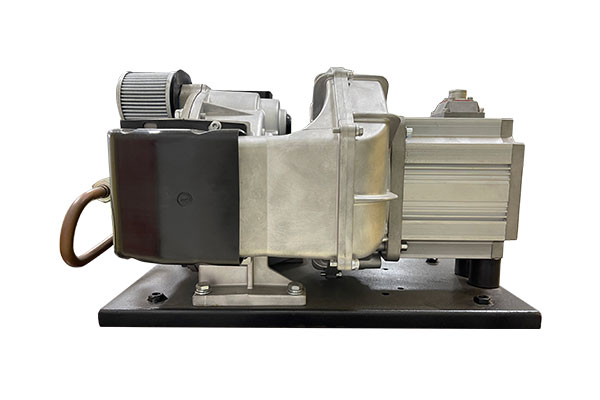

1.5kW Small Oil-free Scroll Head RK-CZ1.5AM Air Compressor Air End

Compared with the traditional compressor, the oi-free scrolltype has excellent performance such as novel structure.compact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]118~145[ psig ]
  • Free Air Delivery:14~21[ cfm ]0.4~0.6[ m3/min ]
  • Working Power:1.5[ kw ]2[ hp ]

Product Details

Compared with the traditional compressor, the oi-free scrolltype has excellent performance such as novel structure.compact size, light weight, low noise level, long life and lowmaintenance cost.lt is known as "maintenance-free aircompressor" and is an ideal model for air compressorsbelow 50HP.


Oil-free Scroll air compressor Advantages


● Fully Oil-free

Class 0 oil-free is certified by GermanTUV organization.

● Low Vibration

The high-pressure area aroundthe axis is evenly distributedwithout eccentricity, good balanceand well controlled vibration.

● Super Silent

Reasonable vibration and noisereduction design, smooth outputairflow without fluctuation, lownoise and low vibration.

● Intelligent and Reliable

Multi-stage scroll air-ends,automatically controls the scrollunits according to the air demand.Failed air-end doesn't affect to thesystem as all units are controlled independently.


Technical Parameters

ModelPower (kw)Maximum pressure mpanoise db(A)Exhaust temperature (°C)Dimensions
(mm)
Weight(kg)
RK-CZ1.5AM1.50.869±3≤150360*351*29014.5
RK-CZ2.2AM2.20.869±3≤150360*351*29015
RK-CZ3.7AM3.70.870±3≤165362*345*29020
RK-CZ5.5AM5.50.872±3≤180420*417*35324.5
