Refrigeration Compressed Air Dryer SGD-40 Blower Heat Desiccant Air Dryer

Zero loss blower desiccant air dryer is a kind of energy-saving compressed air treatment product, composed of the following components: Two adsorption towers, one electric heater, one air blower, one

  • Working Pressure:7~10[ bar ]101.5~145[ psig ]
  • Free Air Delivery:1588.5[ cfm ]45[ m3/min ]
  • Working Power:39.6[ kw ]52.7[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

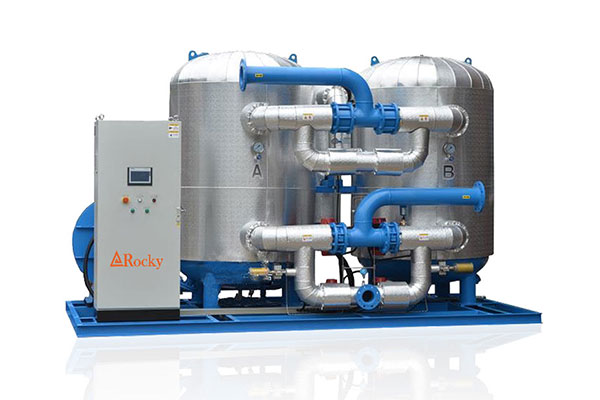

Refrigeration Compressed Air Dryer SGD-40 Blower Heat Desiccant Air Dryer


Product features

1. Zero loss blower desiccant air dryer is a kind of energy-saving compressed air treatment product, composed of the  following components: Two adsorption towers, one electric heater, one air blower, one after-cooler, one set of  switching valves and one set of controlling system.

2. When the compressed air flows through the fixed bed layers of adsorption tower, the moisture will be adsorbed by desiccant,  after the desiccant get saturated, regenerate the desiccant by hot air to recover its adsorption capacity. Use the air blower  sucking the ambient air to cooling the desiccant, full system without air loss.

Technical Parameters

SGD Series Zero Loss Blower Heat Desiccant Air Dryer

ModelSGD-12SGD-15SGD-20SGD-25SGD-30SGD-40SGD-50SGD-60SGD-80SGD-100
Capacitym3/min131723273445556587110
Heating powerkW91215182432.4424864.881
Blower powerkW2.233.34.25.57.28.810.813.817.5
Air pipe connection
DN50DN50DN65DN80DN80DN100DN100DN125DN150DN150
WeightKg950115013801720206027503430412055006300
DimensionL1500160017501900210025302750292030403210

W1450145015001550155021802390251027802920

H2150245027802880210029203100308031203200
