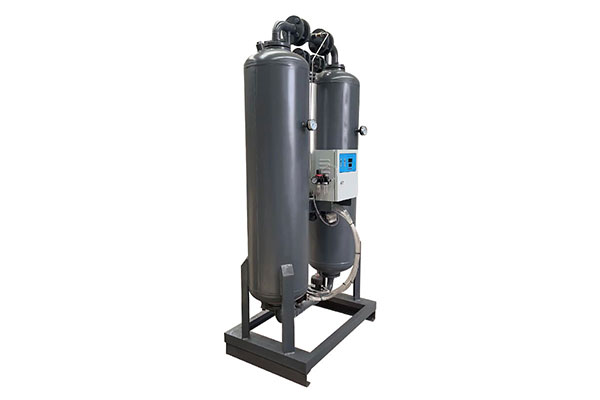

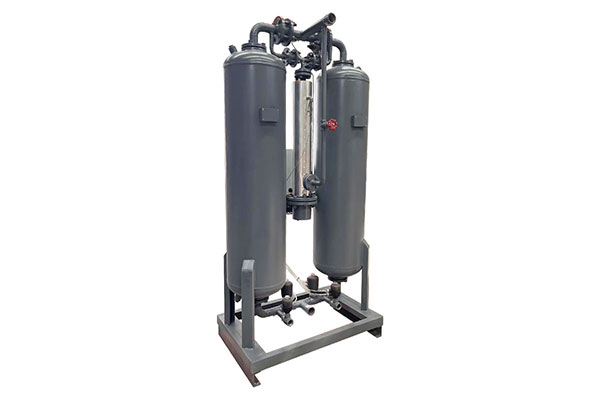

1.2Nm3/min Compressed Micro Heat Adsorption Desiccant Air Dryer SRD-01

Compared to heatless dryer, the heated desiccant air dryer has heater in system . The desiccant adsorb the moisture under the working pressure by heating compressed air on regeneration process. By th

  • Working Pressure:7~13[ bar ]101.5~188.5[ psig ]
  • Free Air Delivery:42.4[ cfm ]1.2[ m3/min ]
  • Working Power:0.5[ kw ]0.6[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details



Standard conditions

Inlet temperature: ≤45°C

Ambient temperature: ≤45°C

Working pressure :5~13bar/13~40bar (Optional)

Inlet oil content:≤0.1ppm (w)

Pressure drop: ≤0.21bar

Dew-point: -20°C/-40°C/-70°C(Optional)

Air loss: ≤6%

Note: Other requirements can be customized


Technical Parameters

SRD Series Heated desiccant air dryer
Model

Air Delivery

 (m3/min)

Voltage
(V/HZ)

Power

 (kW)

Inlet/Outlet
(PT)		Dimension (mm)

Weight

 (kg)

L*W*H
SRD-011.20220V/50HZ1RC1”670*500*1305135
SRD-022.4220V/50HZ1RC1”670*580*1685170
SRD-033.2220V/50HZ1RC1”850*580*1450240
SRD-066.5220V/50HZ2RC1 1/2”1025*700*1700285
SRD-088.5220V/50HZ2RC2”1100*700*2050255
SRD-1011.50380V/50HZ3RC2”1200*500*2173526
SRD-1213.50380V/50HZ3RC2”1300*500*2183605
SRD-1517.00380V/50HZ5DN651280*820*2360712
SRD-2023.00380V/50HZ6DN801400*930*2530848
SRD-2527.00380V/50HZ8DN801650*990*24501150
SRD-3034.00380V/50HZ9DN801700*955*24101328
SRD-4045.00380V/50HZ12DN1001950*1000*25501674
SRD-5055380V/50HZ15DN1002010*1170*26502100
SRD-6065380V/50HZ18DN1252160*1470*27052707
SRD-8085380V/50HZ24DN1502420*1550*28003573
SRD-100110380V/50HZ30DN1502500*1650*28004639
SRD-120130380V/50HZ36DN1502650*1650*28005100
SRD-150155380V/50HZ45DN2002800*1300*29005586
