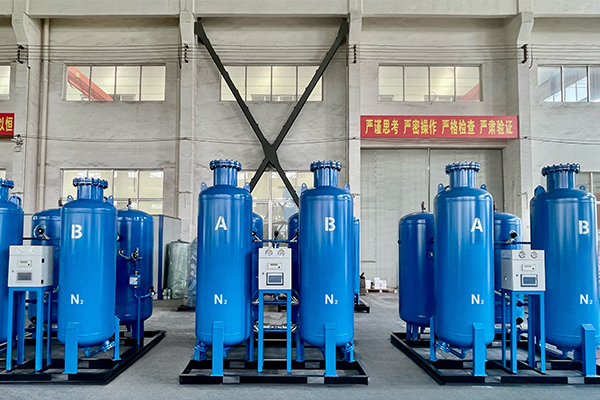

High Purity Psa Nitrogen Gas Generator 99~99.999% Nitrogen Gas Plant

Based on the principle of pressure swing adsorption, high-quality carbon molecular sieve is used as the adsorbent. Due to the kinetic effect under a certain pressure, the diffusion rate of oxygen in t

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:741[ cfm ]21[ m3/min ]
  • Working Power:0.1[ kw ]0.15[ hp ]

Product Details

Nitrogen product features

●Imported pneumatic valves with a service life of more than 3 million times.

● Siemens PLC intelligent program controller, easy to operate and stable in operation.

● Special inert ceramic ball diffusion technology makes the air flow evenly distributed and improves the adsorption efficiency of the adsorbent.

● The self-operated cylinder pressing device protects the service life of the carbon molecular sieve.

● The original centrifugal vibration filling method effectively ensures the maximum filling volume.


Technical indicators

● Nitrogen production: 5~8000Nm3/h

● Nitrogen purity: 95~99.9999%

● Nitrogen pressure: 0~0.8MPa (1.0~15.0MPa available)

● Nitrogen dew point: ≤-45~-70℃




Technical Parameters

ModelRK/CMS-21/59
Nitrogen production21Nm3/h
Nitrogen purity100.00%
Nitrogen pressure 6bar
Nitrogen dew point40℃
Generator power0.1kw
Controll methodPLC Controller
Air buffer tank equipped with 1 pcs of 0.3m3
Nitrogen buffer tankequipped with 1 pcs of 0.3m3
Dust filterequipped with 1 pcs
Inlet sizeDN15
Outlet SizeDN25
Dimension1700*1550*2000mm
Weight1100kg
Required compressed air
Inlet air flow≥2.75m³/min
Inlet air pressure≥8 bar
Inlet air oil content0.01ppm
