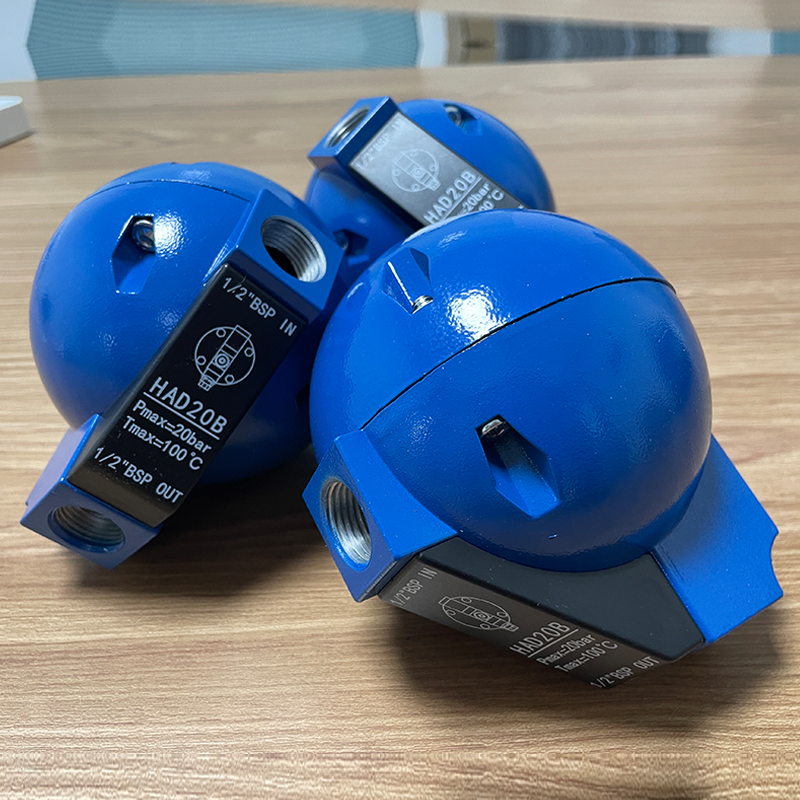

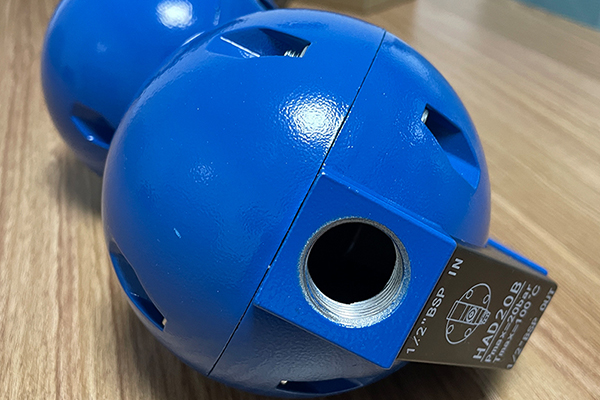

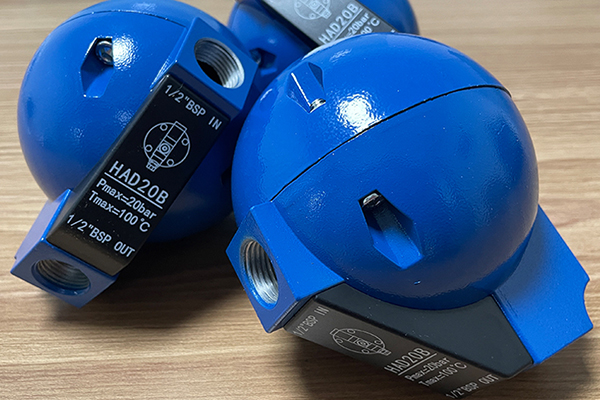

Air Compressor Automatic Drain Regulator Precision Filter Drain Valve HAD20B

Features 1. Automatic control The fully automatic drainage valve does not require manual intervention. It automatically controls drainage through sensors and controllers, which can save a lot of labor

  • Working Pressure:7~16 [ bar ]101.5~232[ psig ]
  • Free Air Delivery:10.59~2308[ cfm ]0.3~65.4[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

HAD20B (4).jpg

Features

1. Automatic control

The fully automatic drainage valve does not require manual intervention. It automatically controls drainage through sensors and controllers, which can save a lot of labor costs.

2. Rapid drainage

The fully automatic drainage valve can quickly remove liquid from the drainage system, greatly improving drainage efficiency.

3. High efficiency and energy saving

The fully automatic drain valve only opens when drainage is needed, which can significantly reduce energy consumption.

4. Simple maintenance

The fully automatic drain valve has a simple structure and is easy to maintain, which can reduce maintenance costs and failure rates.



Technical Parameters

Model

HAD20B

Inlet

1/2 BSP

Outlet

1/2 BSP

Max Pressure

20BAR

Max Temperature

100
