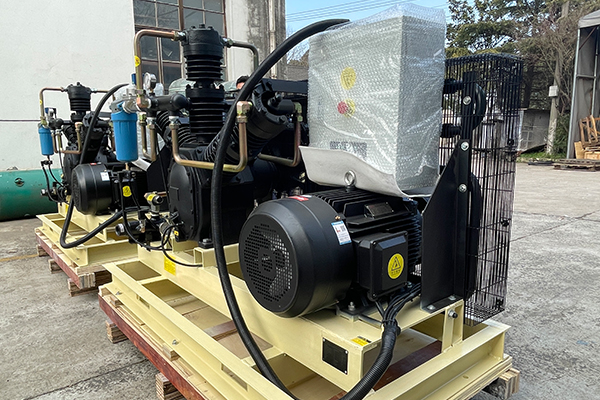

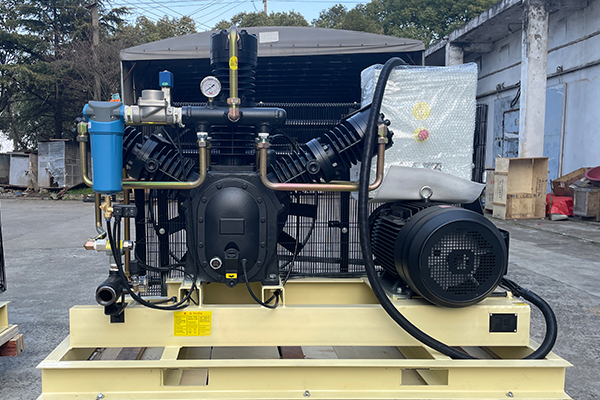

Industrial Piston Compressor 40 Bar Medium High Pressure Air Booster Compressor

Rocky air booster compressor products have high performance, stability and reliability. A high-performance booster can increase the pressure from 0.7-1.0MPa to up to 6.0MPa. For this purpose, you do

  • Working Pressure:40[ bar ]580[ psig ]
  • Free Air Delivery:176.5[ cfm ]5[ m3/min ]
  • Working Power:22[ kw ]30[ hp ]

Product Details


Product feature

1. Rocky air booster compressor products have high performance, stability and reliability. A high-performance booster can increase the pressure from 0.7-1.0MPa to up to 6.0MPa. For this purpose, you do not need to invest in a high-pressure air compressor, thereby saving more costs. 2. High energy efficiency, long component life, low wear, low speed: 340 rpm to 580 rpm, with few wearing parts and easy access to the machine for maintenance. It has strong reliability, easy maintenance, short maintenance time and good effect. 3. The whole booster machine occupies a small area and does not require special basic installation. It provides a variety of options for high-pressure gas sources required by the PET industry.

Technical Parameters

ModelRKW-300/10-40
Capacity5m3/min
Inlet pressure9-9.5bar
Outlet pressure40 bar
Motor power22kw
Voltage380V/50HZ/3PH
Rotating speed630RPM
Dimension2070*1000*1160mm
Weight845kg
