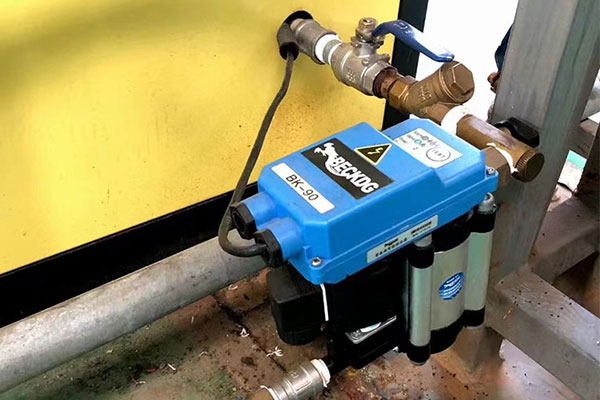

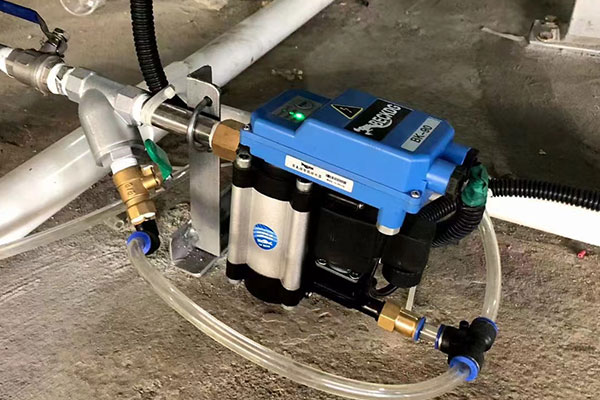

Air Compressor Spare Parts Zero Loss Electronic Automatic Drain Valve Bk-90

The liquid level control zero-gas consumption drainer of the air compressor system realizes the automatic discharge of condensed water in the compressed air system. In the working state, it only drain

  • Working Pressure:0.8~16[ bar ]11.6~232[ psig ]
  • Free Air Delivery:247~2824[ cfm ]7~80[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Product Features

1. Only drainage, no exhaust, zero compressed air loss.

2. Static pressure drainage can be directly connected to the condensate collector. One model is suitable for a variety of applications. It is easy to install, simple to operate, fully automatic, and low maintenance. The sensor accurately and effectively transmits signals, with higher stability and reliability. Metal shell, automatic With a certain level of protection.

3. Compared with using ordinary drains, it saves at least several thousand yuan/year. It is energy-saving, environmentally friendly, gas-saving and efficient.

Technical Parameters

ModelBK-80BK-90BK-350BK-1500
Pressure ( bar )0.8-160.8-160.8-160.8-16
Inlet ( In )1/2(DN15)1/2(DN15)2X1/2(DN15)3X3/4(DN20)
Outlet ( In )3/8(DN10)3/8(DN10)1/2(DN15)1/2(DN15)
Voltage AC ( V)220V220V220V220V
Weight ( Kg )0.830.982.12.85
Compressor Flow(m3/Min)783085
Dryer Flow(m3/Min)141650165
Filter Flow(m3/Min)5560180700
Dimensions (mm)160*66*140190*66*156185*92*165230*120*180
