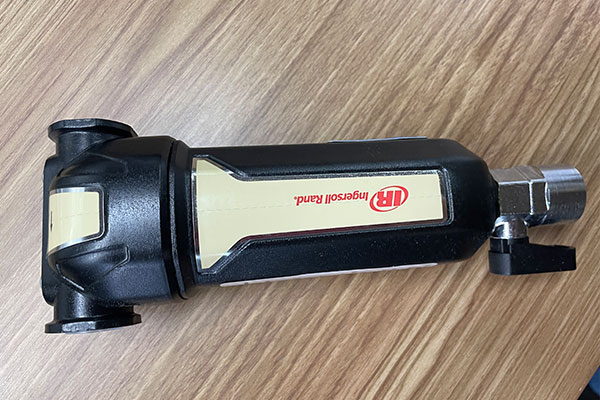

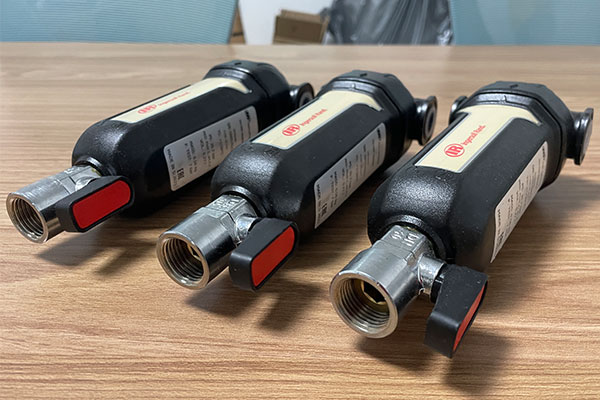

Air Compressor Filter IR Fa30ia Activated Carbon Filter 24356487

IR's advanced F-Series compressed air fi lters reduce contamination in your air stream to help protect your critical processes and valuable equipment. Our filters are rigorously tested and engineered

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:10.59~2308.6[ cfm ]0.3~65.4[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details


Product feature

Better Quality
Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality and additional maintenance. IR F-Series filters address these issues, helping to assure your compressed air system delivers clean, high-quality air throughout your facility.
Better Efficiency
Maintaining a low pressure drop on all compressed air components is critical for an energy-efficient system. Ingersoll Rand F-Series filters have been engineered to deliver low pressure drop throughout the life of the filter element and to provide a unique dual indicator that illustrates the true cost of pressure drop on the system.
Better Choices
Every compressed air system has unique filtration requirements. F-Series filters are available in four different filtration grades, providing complete filtration solutions for all critical compressed air processes.


Technical Parameters

Model

Grade

Pipe Size(In)

Flow Rates(100 psig/7 bar g)

Dimensions

Weight

m3/min

scfm

A

B

C

D

kg

FA30I

A, G,H,D

3/8"

0.48

17

76

173

16

53

0.56

FA40I

A, G,H,D

1/2"

0.62

22

76

173

16

53

0.55

FA75I

A, G, H,D

3/4"

1.27

45

98

228

22

53

1.07

FA110I

A, G,H,D

3/4"

1.84

65

98

228

22

53

1.09

FA1501

A, G,H,D

1"

2.49

88

129

267

32

53

2.06

FA190I

A, G,H,D

1"

3.12

110

129

267

32

53

2.06

FA230I

A, G,H,D

1"

3.82

135

129

267

32

53

2.06

FA400I

A, G,H,D

1 1/2"

6.66

235

129

357

32

53

2.36

FA490I

A, G,H,D

1 1/2"

8.21

290

129

357

32

53

2.36

FA600I

A, G,H,D

2"

9.91

350

170

466

38

53

5.2

FA800I

A, G, H,D

2"

13.31

470

170

466

38

53

5.24

FA1000I

A,G,H,D

2"

16.99

600

170

466

38

53

5.26

FA1200l

A, G,H,D

3"

20.11

710

205

544

55

53

9.31

FA15601

A,G, H,D

3"

26.05

920

205

644

55

53

10.69

FA1830I

A, G,H,D

3"

30.59

1080

205

644

55

53

10.69

FA2300I

A,G,H,D

3"

38.23

1350

205

876

55

53

13.7

FA2700I

A, G, H,D

3"

45.31

1600

205

876

55

53

13.7

Operating Limitations:

Maximum Operating Pressure 17 bar g (250 psig)

Maximum Recommended Operating Temperature (Grade G, H, D)80°C (176°F)

Maximum Recommended Operating Temperature (Grade A) 30°C (86°F)

Minimum Recommended Operating Temperature 1°C (34°F)
