99.99% High Purity Nitrogen Compressor 60nm3/H PSA Nitrogen Generator

Based on the principle of pressure swing adsorption, high-quality carbon molecular sieve is used as the adsorbent. Due to the kinetic effect under a certain pressure, the diffusion rate of oxygen in t

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:205[ cfm ]5.8[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

PSA Nitrogen Generator Product Features

1. Full Automation All systems are designed for un-attended operation and automatic Oxygen demand adjustment.
2. Lower Space Requirement The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.
3. Fast Start-up Start-up time is about 30 minutes to get desired Oxygen purity. So these units can be switched ON & OFF as per Oxygen demand changes.
4. High Reliability It's very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always. 5. Zeolite Molecular Sieves Life Expected Zeolite Molecular Sieves life is more than 10-years i.e. whole life time of Oxygen plant. So no replacement costs.
6. Low investment and energy consumption
7. Simple operation and maintenance


Technical Parameters

Nitrogen generator
ModelRKZD-60/99.99
Nitrogen flow60Nm3/h
Nitrogen purity99.99%
Nitrogen outlet pressure6bar(Adjustable)
Nitrogen dew point-40°C
Generator power0.15kw
Controll methodPLC Controller
Adsorption pressure0.7-0.8Mpa
Air buffer tankequipped with 1 pcs of 0.6m³
Nitrogen buffer tankequipped with 1 pcs of 0.6m³

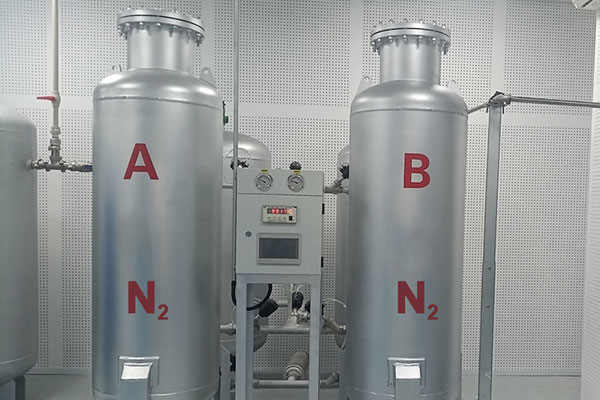

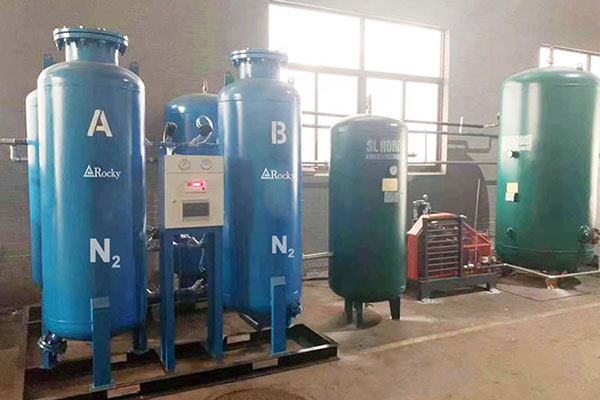

Regeneration methodDouble towers alternate adsorption and continuous operation
Control SystemFully automatic control
Control air pathPU series
Equipment accessoriesPressure gauge, flow meter, purity molecular meter, pressure regulating valve
Materialcarbon steel
Dimension2000*1900*2300mm
Weight1800kg
Required compressed air
Inlet air flow5.8m3/min
Inlet air pressure≥8 bar
Inlet air oil content0.01ppm
