50 HP Industrial Screw Air Compressor 30 Bar 40 Bar Medium Pressure Bottle Blowing

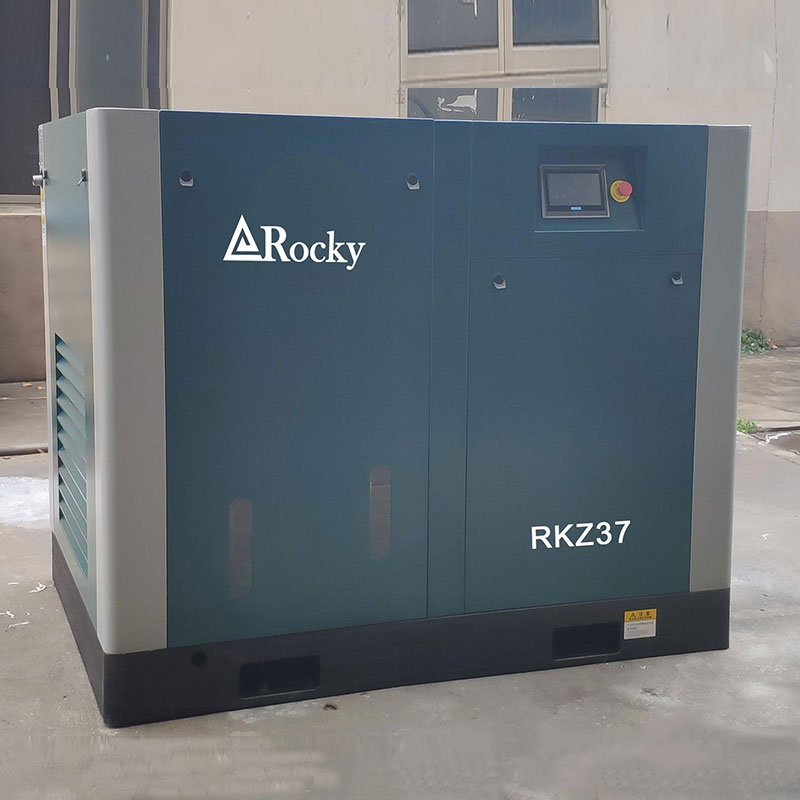

Our RKZ37 oil-injected screw compressors bring industry-leading performance, flexible operation and high productivity, reduced energy costs at a minimal cost of ownership. A wide range of compressors

  • Working Pressure:30~40[ bar ]435~580[ psig ]
  • Free Air Delivery:70.6~201.2[ cfm ]2~5.7[ m3/min ]
  • Working Power:22~50[ kw ]30~66[ hp ]

Product Details

Working principle of medium pressure air compressor

Medium-pressure air compressor is a high-pressure gas mechanical equipment, mainly used to compress gas (usually air) to a certain pressure and store it. It uses a compressor structure such as a plunger machine, a screw machine or a twin-screw machine to compress the gas from atmospheric pressure to the required pressure, and then stores it through a gas storage tank for subsequent use. Medium pressure air compressors can usually provide an output pressure range of 20 to 40 bar atmospheric pressure and are suitable for a variety of industrial applications.



Technical Parameters

Medium pressure micro-oil screw compressor
ModelPressure
  (bar)
Air delivery(m3/min)Power(kW)Noise(db)Cooling methodCompressed air outlet pipe diameterDimension                             L*W*H ( mm)Air supply temperatureSupply gas oil content
RKZ2220~302.02265air cooling3/4 "1600* 1100* 1150≤ambient temperature+25℃≤2 ppm
RKZ3720~303.33767air cooling3/4 "1800* 1350* 1500
RKZ5520~306.25570air coolingDN402100* 1550* 1700
RKZ2230~401.62265air cooling3/4 "1600* 1100* 1150
RKZ3730~403.03767air cooling3/4 "1600* 1100* 1150
RKZ5530~405.75570air coolingDN402100* 1600* 1700
