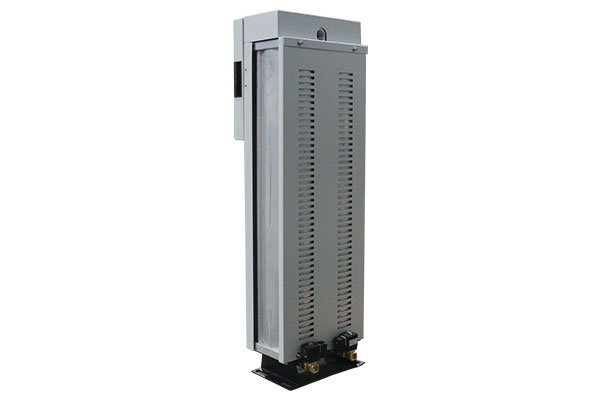

Rocky Modular Air Dryer SPD-02 Compressed Air Adsorption Dryer

Compared with AB tower dryer, the feature of modular dryers can be combined and stacked in a modular manner according to the processing capacity requirements. The optimized distribution design slows d

  • Working Pressure:6~10[ bar ]87~145[ psig ]
  • Free Air Delivery:42~2118[ cfm ]1.2~60[ m3/min ]
  • Working Power:0.2[ kw ]0.3[ hp ]

Product Details

Product feature

Compared with AB tower dryer, the feature of modular dryers can be combined and stacked in a modular manner according to the processing capacity requirements. The optimized distribution design slows down the gas-flow in the adsorption chamber, increases the contact area and time between gas and molecular sieve, maximize the drying effect.


The modular dryer is made of aluminum alloy, so it's anti-corrosion. The volume of each mold barrel is less than 30L which is not belong to the category of pressure vessels, so annual inspection is not required. Also the amount of adsorbent is only 1/3 of the AB tower dryer, leads lower maintenance cost and the adsorption efficiency is almost doubled.



Technical Parameters

ModelMax air delivery
(m3/min)
Voltage
(V/HZ)
Power
(kW)
Outlet
diameter
Dimension(mm)Weight(kg)
SPD-011.2220V/50HZ0.2RC1"332*340*80542
SPD-022.6220V/50HZ0.2RC1"332*340*110555
SPD-033.5220V/50HZ0.2RC1"332*340*140572
SPD-067220V/50HZ0.2RC1-1/2"695*445*1600155
SPD-1010.5220V/50HZ0.2RC2"857*445*1600212
SPD-1314220V/50HZ0.2RC2"1020*445*1600270
SPD-1517.5220V/50HZ0.2RC2"1180*445*1600325
SPD-2021220V/50HZ0.2RC2-1/2"1343*445*1600385
SPD-2525220V/50HZ0.2RC2-1/2"1505*445*1600440
SPD-2828220V/50HZ0.2DN801667*445*1600500
SPD-3535220V/50HZ0.2DN801990*445*1600670
SPD-4042220V/50HZ0.2DN1002315*445*1600770
SPD-5050220V/50HZ0.2DN1002640*445*1600880
SPD-5555220V/50HZ0.2DN1252970*445*16001000
SPD-6063220V/50HZ0.2DN1253287*445*16001160
