5.5kw* 6 Industrial Compressor Silent Oil free Scroll Air-Compressors

Compared with the traditional compressor, the oil-free scroll type has excellent performance such as novel structure compact size, light weight, low noise level, long life and low maintenance cost. It

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:116~127[ cfm ]3.3~3.6[ m3/min ]
  • Working Power:33[ kw ]44[ hp ]

Product Details

Product feature

Compared with the traditional compressor, the oil-free scroll type has excellent performance such as novel structure compact size, light weight, low noise level, long life and low maintenance cost. It is known as "maintenance-free air compressor" and is an ideal model for air compressors below 75HP.

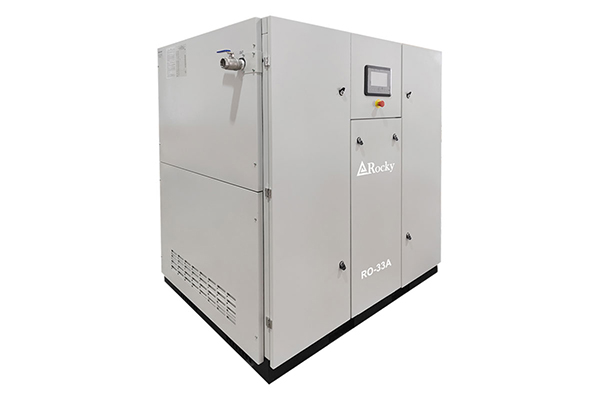

RO-33A (14).jpg

Technical Parameters

Model

RO-33A

Air delivery

3.3~3.6m3/min

Pressure

8~10 bar

Power

33 (5.5kWx6)

Control

automatic PLC controller

Driven

direct driven, elastic coupling

Cooling

by air

Starting

Frequency conversion start

Discharge temperature

less than ambient +8 ℃

Noise

less than 63 dB(A)

Air outlet size

G1 1/2”

Dimension

1565*1274*1775mm

Weight

1020kg
